Features:
DeepinView
Frame Rate:
High
Sensor Type:
1/1.8" Progressive Scan CMOS
Max. Resolution:
3840 × 2160
Min. Illumination:
Color: 0.002 Lux @ (F1.2, AGC ON),B/W: 0.0002 Lux @ (F1.2, AGC ON),B/W: 0 Lux with IR
Shutter Time:
1 s to 1/100,000 s
Day & Night:
IR cut filter
Angle Adjustment:
Pan: 0° to 355°,tilt: 0° to 75°,rotate: 0° to 355°
Focal Length & FOV:
2.8 to 12 mm, horizontal FOV 98.0° to 38.1°, vertical FOV 51.4° to 21.6°, diagonal FOV 118.0° to 44°;8 to 32 mm, horizontal FOV 37.0° to 15.0°, vertical FOV 21.0° to 9.0°, diagonal FOV 43.0° to 17.0°
Focus:
Auto,Semi-auto,Manual
Iris Type:
P-iris
Aperture:
2.8 to 12 mm: F1.2 to F2.5, 8 to 32 mm: F1.7 to F1.73
DORI:
Wide: 2.8 to 12 mm: D (Detect): 89.2 m, O (Observe): 35.4 m, R (Recognize): 17.8 m, I (Identify): 8.9 m;8 to 32 mm: D (Detect): 218.0 m, O (Observe): 86.5 m, R (Recognize): 43.6 m, I (Identify): 21.8 m;Tele: 2.8 to 12 mm: D (Detect): 220.0 m, O (Obse
Supplement Light Type:
IR
Supplement Light Range:
2.8 to 12 mm: Monitoring: 40 m; 8 to 32 mm: Monitoring: 60 m
Smart Supplement Light:
Yes
IR Wavelength:
850 nm
Model Specification:
Up to 4 models, Model type: detection model, classification model, mixed model (detection model and classification model)
Main Stream:
50 Hz: 25 fps (3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720);60 Hz: 30 fps (3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720)
Sub-Stream:
50 Hz: 25 fps (704 × 576, 640 × 480);60 Hz: 30 fps (704 × 480, 640 × 480)
Third Stream:
50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480);60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
Fourth Stream:
50 Hz: 25 fps (704 × 576, 640 × 480);60 Hz: 30 fps (704 × 480, 640 × 480)
Fifth Stream:
50 Hz: 25 fps (704 × 576, 640 × 480);60 Hz: 30 fps (704 × 480, 640 × 480)
Video Compression:
Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264, Fourth stream: H.265/H.264/MJPEG, Fifth stream: H.265/H.264/MJPEG
Video Bit Rate:
32 Kbps to 16 Mbps
H.264 Type:
Baseline Profile,Main Profile,High Profile
H.265 Type:
Main Profile
Bit Rate Control:
CBR,VBR
Scalable Video Coding (SVC:
H.264 and H.265 encoding
Region Of Interest (ROI:
4 fixed regions for each stream
Target Cropping:
Yes
Audio Type:
Mono sound
Audio Compression:
G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate:
64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Audio Sampling Rate:
8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Environment Noise Filtering:
Yes
Protocols:
TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, SRTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP,UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets
Simultaneous Live View:
Up to 20 channels
API:
Open Network Video Interface (Profile S, Profile G, Profile T, Profile M),ISAPI,SDK,ISUP
User/Host:
Up to 32 users;3 user levels: administrator, operator, and user
Security:
Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Inter
Network Storage:
NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR), Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
Client:
iVMS-4200,Hik-Connect,Hik-Central
Web Browser:
Plug-in required live view: IE 10, IE 11, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
Image Parameters Switch:
Yes
Image Settings:
Saturation,brightness,contrast,sharpness,white balance,AGC,adjustable by client software or web browser
Day/Night Switch:
Day,Night,Auto,Schedule,Alarm Trigger
Wide Dynamic Range (WDR:
120 dB
Image Enhancement:
BLC,HLC,3D DNR,Defog
Privacy Mask:
8 programmable polygon privacy masks
Picture Overlay:
LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format.
Image Stabilization:
EIS
Video Outputs:
1 Vp-p Composite Output (75 Ω/CVBS) (Only for debugging)
Ethernet Interface:
1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port
On-Board Storage:
Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1 TB
Built-In Microphone:
Yes, 2 built-in microphones
Built-In Speaker:
Max. power consumption: 1.5 W, max. sound pressure level: 98 dB, speaker range: 10 m
Audio Support:
1 input (line in), 3.5 mm connector, three-contact, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), 3.5 mm connector, three-contact, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω
Alarm:
2 inputs, 2 outputs (max. 24 VDC/24 VAC, 1 A)
RS-485:
1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
Reset Key:
Yes
Power Output:
12 VDC, max. 100 mA
Basic Event:
Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,video quality diagnosis,exception (network disconnected, IP address conflict, illegal login, abnormal restart, HDD full, HDD error),vibrat
Smart Event:
scene change detection,audio exception detection,defocus detection
Linkage:
Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,audible warning
Multi-Target-Type Detection:
Supports simultaneous detection and capture of human body, face, and vehicle, Gets 7 face features, Gets 13 human body features, Gets 2 vehicle features, Supports counting the number of line crossing targets by type, including human body, non-motor v
Face Capture:
Detects up to 120 faces simultaneously, captures up to 40 face pictures per frame simultaneously and uploads up to 10 face pictures per second, Supports swing left and right from -60° to 60°, tilt up and down from -30° to 30°, Uploads face with backg
Face Comparison:
Up to 10 face libraries. 30,000 faces for each library. 150,000 faces in total, Supports face library encryption
Metadata:
Intrusion detection,line crossing detection,region entrance detection,region exiting detection,face capture,multi-target-type detection
Perimeter Protection:
Line crossing, intrusion, region entrance, region exiting;Support alarm triggering by specified target types (human and vehicle);Support combined event alarm triggering
People Counting:
Supports Multi-Dimension People Counting, Supports counting, displaying and exporting the people flow data of entering, exiting and passing by (The data is stored in the flash.), Supports real-time uploading and uploading by statistic cycle, Supports
Queue Management:
Supports up to 8 detection regions, and independent arming schedule and linkage method;Supports 2 detection modes: regional people queuing-up, waiting time detection;Generates reports to compare the efficiency of different queuing-ups and display the
Heat Map:
A graphic description of visits (by calculating amount of people or amount of dwell time) in a configured area., Two report types are available, space heat map and time heat map line chart.
Hard Hat Detection:
Detects up to 30 human targets simultaneously;Supports up to 4 shield regions
Regional People Counting:
Supports up to 8 detection regions, and independent arming schedule and linkage method;Supports 3 detection modes: people density detection, number of people exception detection, waiting time exception detection;Supports parameter settings: alarm tim
On/Off Duty Detection:
Supports up to 8 detection regions, and independent arming schedule and linkage method;Supports 2 detection modes: absence detection, on/off duty detection;Supports parameter settings: person on duty, absence duration
Power Type:
12 VDC ± 25%, 0.97 A, max. 11.43 W,three-core terminal block,reverse polarity protection, 24 VAC ± 25%, 0.73 A, max. 10.67 W, PoE: IEEE 802.3at, Type 2, Class 4, 42.5 V to 57 V, 0.19 A to 0.28 A, max. 11.92 W
Material:
Base: metal, cover: metal
Dimension:
Ø144.3 mm × 114.1 mm (Ø5.7" × 4.5")
Package Dimension:
244 mm × 174 mm × 173 mm (9.6" × 6.9" × 6.8")
Weight:
Approx. 990 g (2.0 lb.)
With Package Weight:
Approx. 1425 g (3.1 lb.)
Storage Conditions:
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup And Operating Conditions:
With -H: -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing), Without -H: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language:
33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Tradition
General Function:
Heartbeat,one-key reset,mirror,password protection
Cable Length:
0.25 m (0.8 ft.)
Device Management:
Supports adding alarm box (DS-FM2466) in the LAN to expand 6 additional input and 6 output alarm interfaces
EMC:
FCC: 47 CFR Part 15, Subpart B, CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014, EN50121-4, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015
Safety:
UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005, LOA: IEC/EN 60950-1
Environment Rating:
CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
Protection:
IP67: IEC 60529-2013;IK10: IEC 62262:2002
Anti-Corrosion Protection:
-Y: NEMA 4X (NEMA 250-2018)
CC:
Common Criteria, Assurance Level: EAL2 + ALC_FLR.2
Other:
PVC FREE

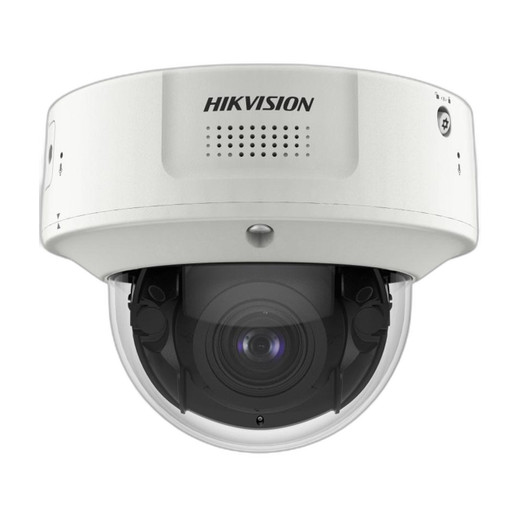

Product Type:
Dome
Connectivity:
Wired
IP Rating:
IP67
Night Vision:
IR
PoE Class:
4
Form Factor:
Dome
Vandal Rating:
IK10
Max Channels:
20
Resolution:
8MP
IR Distance:
10m
Built-in IR:
Yes
Day/Night:
Yes
Analytics:
Facial Recognition
Storage Support:
microSD
Outdoor Ready:
Yes
HTTPS Encryption:
Yes
WDR:
WDR
Power Max:
1.5W
Lens Type:
Varifocal
Image Sensor Size:
1/1.8"
Horizontal Fov:
112.3°
Vertical Fov:
58.1°
