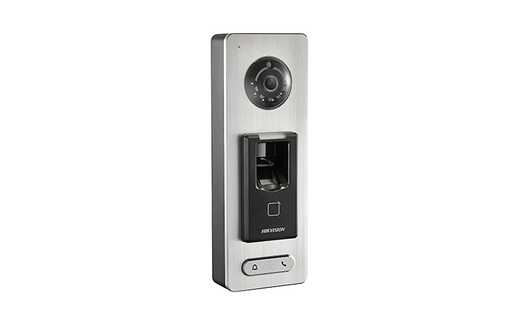

Hikvision DS-K1T501SF Video Access Control Terminal

The Hikvision DS-K1T501SF Video Access Control Terminal is a comprehensive security solution, combining high-definition video surveillance with advanced access control features. This terminal is designed to cater to the security needs of various environments, including corporate offices, government buildings, and other sensitive areas where security and efficient access control are paramount.

Key Features:

• High-Definition Camera: Equipped with a 2 MP/1080p HD camera, the terminal provides clear and detailed video footage, enhancing security monitoring and identification processes.
• Fingerprint Recognition Module: Features a sophisticated fingerprint recognition system supporting both 1:1 and 1:N modes, offering a secure and convenient method of authentication.
• Versatile Communication Protocols: Supports TCP/IP and Wi-Fi communication, ensuring easy integration into existing network infrastructures and facilitating remote management.
• eHome Protocol Compatibility: Enhances its adaptability to various network environments and systems.

Compatibility:

• Mifare Card Support: The terminal is compatible with Mifare cards, providing an additional layer of security and convenience for access control.
• Multiple Input/Output Interfaces: Includes a door magnetic sensor, two alarm inputs, a tamper-resistant switch, and an exit button, allowing for comprehensive security system integration.

Specifications:

• Storage Capacity: Features a maximum of 32 GB built-in microSD card for storing video footage and access logs.
• Power Supply: Operates on 12 VDC/1 A, ensuring stable and continuous performance.
• Environmental Tolerance: Designed to function in a wide temperature range, from -40° to 140° F (-40° to 60° C), suitable for various climatic conditions.
• Operating Humidity: Works efficiently within a humidity range of 10% to 90% (non-condensing), ensuring reliability in different environmental settings.
• Dimensions: Compact and sleek, measuring 8.58" × 3.07" × 1.61" (218 mm × 78 mm × 41 mm), allowing for easy installation in various locations.

Package Contents:

• Hikvision DS-K1T501SF Video Access Control Terminal
• Installation Guide
• Mounting Hardware
• Power Adapter (if applicable)

The Hikvision DS-K1T501SF is more than just an access control device; it's a sophisticated solution that integrates high-quality video surveillance with advanced access control capabilities. Its compatibility with various communication protocols and environmental conditions makes it an ideal choice for organizations looking for a reliable and efficient way to manage access control and enhance security. Whether it's for a high-traffic corporate environment or a sensitive data center, the DS-K1T501SF stands as a testament to Hikvision's commitment to delivering top-tier security solutions.
