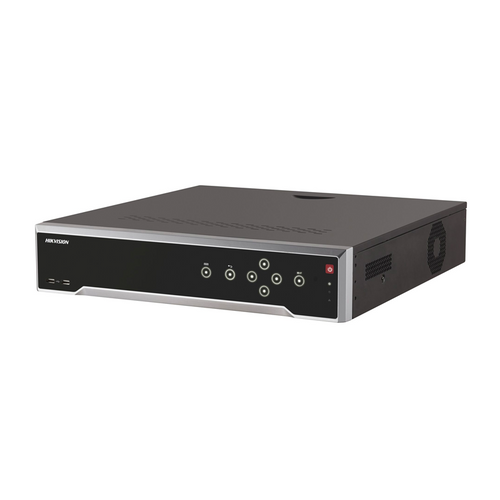

Hikvision DS-7716NI-I4/16P-6TB 16-Channel 4K 6TB NVR
The Hikvision DS-7716NI-I4/16P-6TB is a high-performance 16-channel NVR designed for businesses and organizations seeking a scalable and efficient vid…
Hikvision DS-7716NI-I4/16P-6TB 16-Channel 4K 6TB NVR
Your recommended setup
Review items below — quantities update pricing automatically.
Item
Qty
Status
Price
Optional Add-Ons recommended
Services optional
Bundle Summary
Bundle Subtotal:
$0.00
Optional Add-Ons:
$0.00
Services:
$0.00
Total:
$0.00
Overview
SKU:
DS-7716NI-I4/16P-6TB
UPC:
813908028447
Condition:
New
Availability:
No Longer Available
Warranty
5-year warranty
Description
The Hikvision DS-7716NI-I4/16P-6TB is a high-performance 16-channel NVR designed for businesses and organizations seeking a scalable and efficient video surveillance solution. This plug-and-play NVR simplifies setup with its integrated PoE switch, eliminating the need for separate power supplies for connected IP cameras. Furthermore, the DS-7716NI-I4/16P-6TB supports superior 4K ultra-high definition recording, ensuring exceptional image clarity for detailed forensic analysis. The pre-installed 6TB hard drive offers ample storage capacity for recordings, making it ideal for various business security needs.
Key Features:
- Integrated 16-Port PoE Switch: Simplifies installation by powering IP cameras directly through the NVR, reducing cabling requirements.
- 4K Ultra-HD Recording: Delivers exceptional image quality with sharp details for reliable identification.
- 6TB Pre-installed HDD: Provides ample storage for recordings, suitable for most business surveillance needs.
- H.265+ Video Compression: Reduces storage requirements and bandwidth consumption without compromising video quality.
- Plug-and-Play Functionality: Simplifies setup for easy deployment, ideal for businesses of all sizes.
- Smart Search and Playback: Enables quick retrieval of specific events using intelligent search filters.
- Mobile and Remote Access: Enables live viewing and playback of recorded footage from anywhere via a smartphone or tablet.
Compatibility:
- Compatible with a wide range of Hikvision IP cameras and other ONVIF-compliant IP cameras.
Package Contents:
- Hikvision DS-7716NI-I4/16P-6TB NVR
- Power supply
- Mouse
- Quick Start Guide
Summary:
The Hikvision DS-7716NI-I4/16P-6TB NVR offers a compelling combination of features for businesses seeking a user-friendly and scalable video surveillance solution. The integrated PoE switch simplifies installation, while 4K recording provides exceptional image clarity. With a pre-installed 6TB hard drive and H.265+ video compression, this NVR delivers ample storage capacity for most business needs. The Hikvision DS-7716NI-I4/16P-6TB is a versatile and scalable solution for businesses of all sizes.
Specifications
Frame Rate:
32fps
IP Video Input:
16-ch;16-ch;Up to 12 MP resolution
Outgoing Bandwidth:
256 Mbps
VGA Output:
1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz;HDMI,VGA
CVBS Output:
1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
HDMI 1 Output:
4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
HDMI 2 Output:
1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Video Output Mode:
HDMI1/VGA simultaneous output, HDMI2/VGA independent output
Incoming Bandwidth:
160 Mbps
Audio Output:
1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio:
1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)
Dual-Stream Recording:
Support
Stream Type:
Video, Video & Audio
Audio Compression:
G.711ulaw/G.711alaw/G.722/G.726
Decoding Format:
H.265+/H.265/H.264+/H.264/MPEG4;H.265/H.265+/H.264/H.264+/MPEG4
Decoding Capability:
2-ch@12 MP (20 fps)/4-ch@8 MP (25 fps)/8-ch@4 MP (30 fps)/16-ch@1080p (30 fps);16-ch@1080p
Synchronous Playback:
16-ch
Recording Resolution:
12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF /DCIF/ 2CIF/CIF/QCIF ;12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/ 2CIF/CIF/QCIF
Network Protocol:
TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
Remote Connection:
128
Network Interface:
1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
Connectivity:
Wired
Standard:
IEEE 802.3 af/at
ESATA:
1 eSATA interface (optional)
SATA:
4 SATA interfaces for 4HDDs;4 SATA interfaces
Capacity:
Up to 10 TB capacity for each disk
Serial Interface:
1 RS-485 (half-duplex), 1 RS-232
USB Interface:
Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
Alarm In/Out:
16/4 (16/8 optional)
Power Type:
100 to 240 VAC, 50 to 60 Hz
Consumption:
≤ 20 W (without HDD and PoE off)
Working Temperature:
-10 °C to 55 °C (14 °F to 131 °F)
Working Humidity:
10% to 90%
Chassis:
19-inch rack-mounted 1.5U chassis
Dimension (W × D × H:
440 × 387 × 75 mm ( 17.3"× 15.2" × 3.0")
Weight:
≤ 5 kg (11 lb) (without HDD)
FCC:
Part 15 Subpart B, ANSI C63.4-2014
CE:
EN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4
