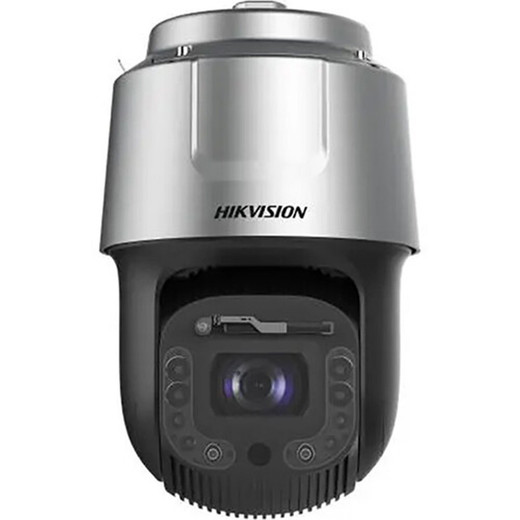

Hikvision DS-2DF8C442IXG-ELW 4MP AI IR PTZ DarkFighter Outdoor Dome IP Camera

Hikvision DS-2DF8C442IXG-ELW 4MP AI IR PTZ Dome Camera

The Hikvision DS-2DF8C442IXG-ELW is a premium outdoor PTZ dome camera engineered for comprehensive surveillance in demanding environments. Combining 4MP resolution, advanced AI detection, extended 42x optical zoom, and intelligent IR illumination to 400 meters, this camera delivers superior monitoring capabilities for critical security applications requiring both wide-area coverage and detailed target identification.

Key Features

• 4MP 1/1.8" progressive scan CMOS sensor with 2560×1440 native resolution
• 42x optical zoom with 16x digital zoom (6.0–252 mm focal length)
• DarkFighter IR technology with up to 400 m IR range and smart supplemental lighting
• AI-powered detection: facial recognition (30 simultaneous faces), vehicle classification, license plate recognition, and perimeter protection
• Full 360° pan with intelligent pan-tilt correction; -20° to 90° tilt with auto flip
• 300 presets, 8 patrol scans, 4 pattern scans with 10+ minute recording capability
• Manual and automatic smart tracking for moving targets
• 140 dB wide dynamic range (WDR) with 3D DNR, HLC, and BLC for optimal image quality across lighting conditions
• Extreme low-light performance: 0.0005 Lux B/W, 0.001 Lux color; 0 Lux with IR
• IP67 weatherproofing and IK10 vandal resistance; 6000V lightning and surge protection
• Rain-sensing auto wiper for continuous visibility
• PoE 802.3bt power (max 51 W) or 24 VAC; operates -40°C to 70°C
• Multiple video streams: H.265+/H.264+ main stream (up to 30 fps @ 2560×1440), sub-stream, and third stream for flexible bandwidth management
• Built-in microSD card slot (up to 256 GB) plus NAS/FTP network storage and ANR
• 8 alarm inputs, 2 outputs; RS-485 for integration with legacy systems
• Up to 20 simultaneous live view channels; 32 user accounts with three privilege levels
• HTTPS encryption, 802.1X authentication, IP filtering, and watermarking for enhanced security

Technical Highlights

This PTZ camera excels in demanding outdoor surveillance scenarios where AI-driven intelligence and extended optical reach are essential. The 42x zoom and 56.6° to 1.7° horizontal FOV enable operators to switch seamlessly from wide-area monitoring to forensic-quality close-ups. Proportional pan-tilt control and configurable pan/tilt speeds (up to 210°/s pan, 150°/s tilt) ensure rapid target acquisition. The combination of slow shutter capability (1/1 s to 1/30,000 s), F1.2 maximum aperture, and IR supplementation provides unmatched low-light performance without image artifacts.

Advanced video encoding (H.265+) reduces bandwidth by up to 50% versus H.264, while triple-stream architecture supports simultaneous analytics, live view, and recording. Built-in face and vehicle detection with comparison functionality integrate seamlessly with Hikvision management platforms (HikCentral, iVMS-4200, Hik-Connect) and open standards (ONVIF Profile S/G/T, ISAPI, Hikvision SDK).

Applications

• Critical infrastructure protection (power plants, transportation hubs, utilities)
• Large outdoor areas (parking lots, perimeters, campuses)
• Traffic and security checkpoints requiring vehicle and facial recognition
• Border and asset protection with extended night vision range
• Integrated security operations demanding multi-stream, multi-user capability

Marty Allison

The DS-2DF8C442IXG-ELW represents a mature high-end PTZ platform optimized for AI-centric operations. Its 42x optical zoom paired with DarkFighter IR addresses the traditional PTZ challenge of maintaining detail at distance in low light. The 140 dB WDR and proportional pan-tilt correction ensure smooth, artifact-free pans across backlit scenes.

For integrators, the triple-stream architecture and multi-user framework reduce the need for additional edge processing, while ONVIF and ISAPI support streamline deployment in heterogeneous ecosystems. PoE 802.3bt eliminates the need for separate heater/IR power supplies on standard installations. The combination of perimeter protection, face capture with grading, and vehicle detection makes this unit ideal for facilities requiring both detection and forensic identification.

Power consumption remains reasonable at 51 W PoE, enabling efficient medium-scale deployments. Rain-sensing wipers and IP67/IK10 ratings confirm suitability for exposed outdoor mounting in harsh climates.
