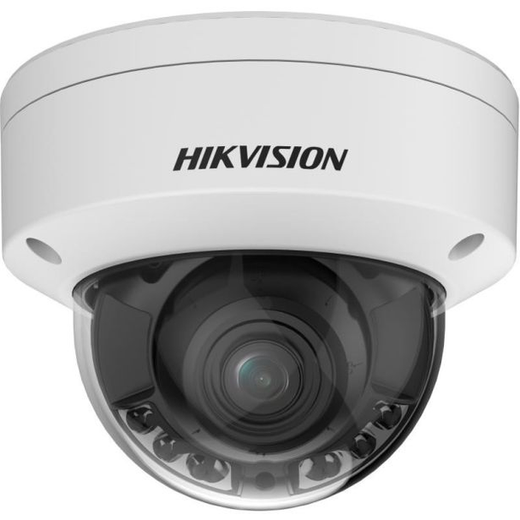

Hikvision DS-2CD3748G2T-LIZSU 8MP AcuSense AI IR WDR Outdoor Dome IP Camera

The Hikvision AcuSense DS-2CD3748G2T-LIZSU 4 MP Outdoor AI IR Dome Network IP Camera is a top-tier surveillance solution, engineered to deliver exceptional image quality and intelligent analytics for outdoor security applications. Featuring a 4-megapixel high-resolution sensor, this camera produces sharp, clear images, enabling precise identification and monitoring of activities within its field of view. The integration of AcuSense technology is a key highlight, utilizing advanced AI algorithms to accurately differentiate between human and vehicle targets from other moving objects, such as animals or natural elements. This capability significantly reduces false alarms, enhancing operational efficiency and allowing security personnel to focus on real security threats.

Designed to excel in various outdoor settings, the DS-2CD3748G2T-LIZSU is equipped with sturdy weatherproof features, ensuring reliable performance under challenging environmental conditions. Its infrared (IR) illumination extends its surveillance capabilities to low-light conditions, providing clear, detailed images even in complete darkness, ensuring uninterrupted security coverage around the clock. The camera supports a range of connectivity options, including both wired and wireless configurations, and offers multiple storage solutions, such as NVR, cloud, and onboard storage, catering to different data management preferences. Furthermore, the Power over Ethernet (PoE) feature simplifies the installation process by combining power and data transmission over a single cable, facilitating a seamless and efficient deployment.

Key Features:

• High-Resolution Imaging: The camera's 1/1.8" progressive scan CMOS sensor delivers high-resolution 2688 × 1520 imaging, ensuring every detail is captured with clarity.

• Motorized Varifocal Lens: The motorized varifocal lens (2.7 to 13.5 mm) enhances the camera's versatility, simplifying installation and enabling effective area coverage.

• Smart Dual-Light Technology: Enhanced with Smart Dual-Light technology, this camera guarantees clear images even in low-light conditions, ensuring you don't miss a thing.

• 140 dB Wide Dynamic Range (WDR): The camera's WDR technology effectively handles strong backlighting situations, ensuring consistently high-quality imaging.

• Durable Build: With an IP67 rating for water and dust resistance and IK10 vandal resistance, this camera is built to withstand the harshest indoor and outdoor environments.

• Efficient Video Compression: Support for H.265+ compression technology optimizes storage and bandwidth usage, making it efficient for extensive surveillance systems.

Compatibility:

• Power over Ethernet (PoE): Compliant with IEEE 802.3at, Class 4, for flexible power and data transfer.

Specifications:

• Resolution: 4 MP (2688 × 1520)

• Lens: Varifocal lens, motorized lens, 2.7 to 13.5 mm

• Sensor: 1/1.8" Progressive Scan CMOS

• Field of View:

  • Horizontal: 114.6° to 41.8°
  • Vertical: 59.3° to 23.6°
  • Diagonal: 141.3° to 48.1°

• Wide Dynamic Range: 140 dB

• Image Enhancement: BLC, HLC, 3D DNR, Defog

• Video Compression: Main stream: H.265/H.264/H.264+/H.265+

• Power:

  • 12 VDC ± 25%, 1.0 A, max. 12 W, Ø5.5 mm coaxial power plug, reverse polarity protection
  • PoE: IEEE 802.3at, Class 4, max. 14 W

• Dimensions: Ø141 mm × 112 mm (Ø5.6" × 4.4")

Package Contents:

• Hikvision AcuSense DS-2CD3748G2T-LIZSU 4 MP Outdoor AI IR Dome Network IP Camera

Experience unmatched surveillance capabilities with the Hikvision AcuSense DS-2CD3748G2T-LIZSU, designed to meet the demands of modern security. Order now and enhance your security infrastructure with precision and efficiency.
