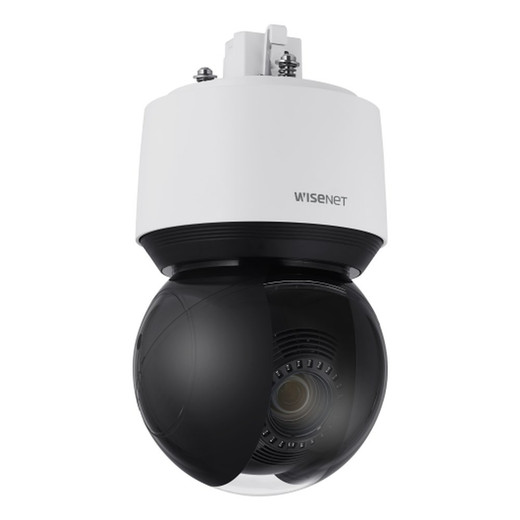

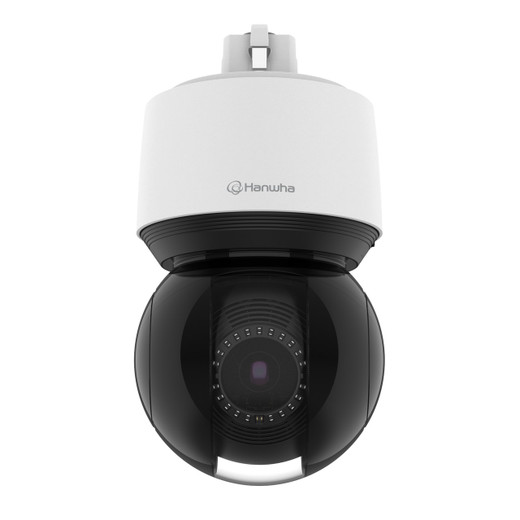

Hanwha XNP-6400 2MP PTZ Network Camera

Hanwha XNP-6400 2MP PTZ Network Camera

The Hanwha XNP-6400 is a professional-grade PTZ (Pan, Tilt, Zoom) network camera engineered for demanding surveillance applications requiring long-range observation and comprehensive area coverage. Built on a 1/2.8" CMOS sensor with 2MP resolution, this camera delivers exceptional performance across a 40x optical zoom range (4.25-170mm), enabling operators to identify subjects from extreme distances—up to 1,535.7 meters at maximum telephoto. Its unlimited 360-degree pan capability combined with 110-degree tilt range makes it ideal for monitoring expansive outdoor areas including parking lots, campuses, transportation hubs, and city infrastructure.

Key Features

• 2MP 1920x1080 resolution with 40x optical + 32x digital zoom (1280x total magnification)
• Unlimited 360-degree continuous pan at speeds up to 700°/second
• Extreme WDR (150dB) for balanced exposure in high-contrast scenes
• Intelligent auto-tracking for person and vehicle detection and pursuit
• IP66 weatherproof and IK10 vandal-resistant construction
• PoE+ powered operation with minimal power consumption (20W typical)
• Advanced analytics including directional detection, face detection, loitering, and virtual line crossing
• Micro SD/SDHC/SDXC dual-slot edge storage up to 1TB

Technical Highlights

The XNP-6400 achieves exceptional long-range performance metrics: 59.5-meter detection range in wide mode and 2,340-meter detection capability in telephoto. Day/night functionality with automatic ICR (Infrared Cut filter Removal) ensures round-the-clock surveillance without manual intervention. The camera supports H.265/H.264 and MJPEG compression with WiseStream II smart codec technology, enabling adaptive bitrate management and efficient bandwidth utilization. Built-in gyro-stabilization compensates for vibration and movement, critical for PTZ cameras mounted on structures subject to wind or traffic vibration.

Sophisticated motion compensation features include water removal with spinning dry capability, defog processing, and SSNR V digital noise reduction. The camera offers 300 programmable presets with ±0.1-degree pan/tilt accuracy correction, automated group sequences (6 groups), swing patterns, and schedule-based operation for unattended surveillance. Eight configurable motion detection zones with 8-point polygonal masking, plus 32 privacy mask areas with selectable colors or mosaic obfuscation, provide flexible operational control.

Security & Integration

Network security includes HTTPS/SSL encryption, 802.1X authentication, IP filtering, and user access logging. The camera operates on IPv4/IPv6 and supports ONVIF Profile S/G/T, SUNAPI HTTP API, and Wisenet open platform integration. Unicast streaming supports up to 20 simultaneous users with multicast capability for 128 users, while 10 concurrent profiles enable diverse stream configurations. Alarm triggers based on analytics events or network issues can initiate FTP uploads, email notifications, SD card recording, or NAS backup with automatic PTZ preset handover.

Environmental Durability

Rated to NEMA4X and NEMA-TS 2 standards, the camera operates in temperatures ranging from -40°C to +55°C with humidity up to 95% non-condensing. Its aluminum and polycarbonate construction with hard-coated dome withstands harsh outdoor conditions and intentional tampering.

James Everett

The XNP-6400 represents Hanwha's commitment to extreme long-range surveillance. Its 1280x combined zoom ratio is exceptional in the 2MP category, enabling identification of vehicles and persons at distances impractical for fixed cameras. The 150dB WDR specification is among the highest available, making it suitable for applications with severe backlighting such as entrance monitoring against bright skies or perimeter surveillance with vehicle headlights.

Preset accuracy of ±0.1 degrees ensures operators reliably return to patrol points or critical angles. The dual-slot SD storage and advanced analytics (face detection, directional tracking, loitering detection) position this camera as a self-sufficient surveillance node capable of local decision-making without constant network connectivity. Recommended for tier-1 security applications where megapixel density is less critical than operational range and environmental resilience.
