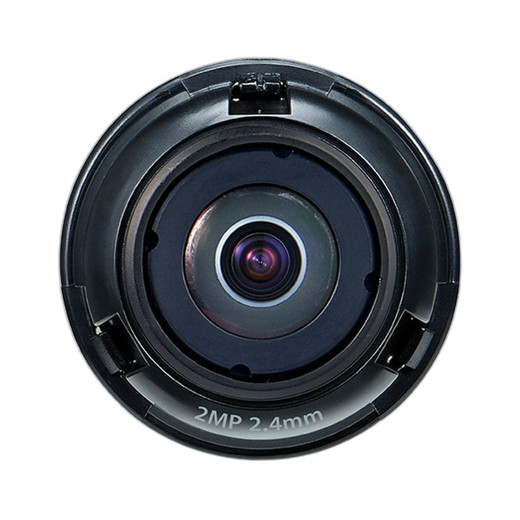

Hanwha SLA-2M2400P 2MP Lens Module

Hanwha SLA-2M2400P 2MP Lens Module for PNM-9320VQP

The Hanwha SLA-2M2400P is a precision 2MP lens module engineered specifically for the PNM-9320VQP camera platform. This fixed focal length lens delivers crystal-clear imaging with an expansive field of view, making it an ideal choice for comprehensive surveillance deployments requiring wide coverage and reliable day/night performance.

Key Features

• 2MP CMOS Sensor: 1/2.8" CMOS sensor provides sharp, detailed imagery for effective surveillance monitoring
• Wide Field of View: 135.4° horizontal and 71.2° vertical coverage minimizes blind spots and maximizes area coverage
• 2.4mm Fixed Focal Length: Optimized for wide-angle surveillance applications with consistent focal performance
• Day/Night Capability: Delivers reliable performance in low-light environments with 0.055Lux@F2.0 sensitivity in both color and black/white modes
• Native Compatibility: Seamlessly integrates with PNM-9320VQP camera systems for plug-and-play deployment

Technical Specifications

• Resolution: 2MP
• Sensor Type: 1/2.8" 2MP CMOS
• Focal Length: 2.4mm fixed
• Field of View: H: 135.4°, V: 71.2°
• Minimum Illumination: 0.055Lux@F2.0 (Color), Black/White (2MP lenses)
• Compatible Platform: PNM-9320VQP

Applications

The SLA-2M2400P is ideal for wide-area surveillance in retail environments, office spaces, warehouses, and perimeter monitoring applications where expansive field of view and reliable low-light performance are required. The module's wide horizontal coverage of 135.4° makes it particularly effective for corridor monitoring, lobby surveillance, and large open spaces.

Jerry Tildsen

This lens module represents a purpose-built solution for organizations standardizing on Hanwha's modular camera platform. The 2.4mm fixed focal length delivers approximately 135° horizontal coverage—a sweet spot for wide-angle situational awareness without the distortion that ultra-wide angles introduce. The 1/2.8" CMOS sensor paired with F2.0 light transmission enables the module to maintain usable imagery at 0.055Lux, a critical specification for surveillance environments with variable or insufficient ambient lighting.

The fixed focal design eliminates mechanical complexity and potential points of failure associated with motorized optics, making this module suitable for stable, long-term deployments. For integrators deploying PNM-9320VQP systems at scale, this lens module ensures consistency across installations while simplifying inventory and spare parts management. The 135.4° horizontal field of view is particularly valuable for reducing the number of cameras required in wide corridors or large perimeter areas, lowering overall system cost and management overhead.
