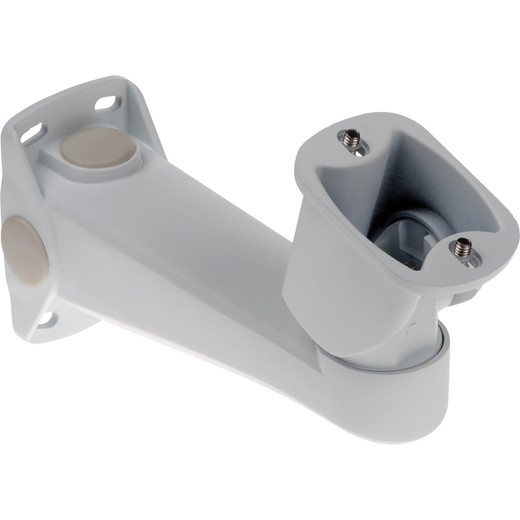

Axis T94X01A Wall Mount for T92F10 Housing

Axis T94X01A Wall Mount for T92F10 Housing

The Axis T94X01A Wall Mount is a robust, versatile mounting solution designed for the Axis T92F10 Outdoor Housing. Built from powder-coated aluminum, this mount delivers durability and reliable performance in both indoor and outdoor installations. With its flexible cable routing options and wide range of motion, it provides installers with the freedom to optimize camera positioning and cable management on any project.

Key Features

• 360° pan and 90° tilt rotation for comprehensive positioning
• Powder-coated aluminum construction in white for corrosion resistance
• Multiple cable routing paths: back, side, and top for clean installations
• 15 kg (33 lb) maximum load capacity
• Compact dimensions: 255 x 179 x 80 mm
• Suitable for both indoor and outdoor environments
• Meets EN 50581, IEC/EN 60950–1, and IEC/EN 60950–22 standards
• Includes installation guide
• 3-year Axis warranty

Technical Specifications

This mount supports the AXIS T92F10 Outdoor Housing with exceptional flexibility. The 360° pan and 90° tilt range enables optimal camera angle adjustment for virtually any surveillance requirement. Weighing only 1.2 kg, the mount's lightweight design simplifies installation while maintaining a 15 kg load capacity. Cable routing flexibility—available from the back, sides, or top—ensures clean, professional installations regardless of wall configuration or conduit placement. The white NCS S 1002-B finish integrates discretely into modern architectural settings.

Applications

Ideal for security integrators installing outdoor housings on building facades, parking structures, or industrial facilities. The flexible positioning and weatherproof aluminum construction make it suitable for perimeter security, traffic monitoring, and facility surveillance installations.
