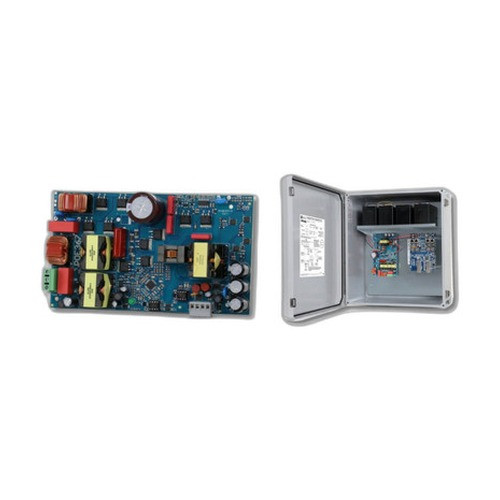

Altronix T3MK5SH2 Modular Power Supply 8/16 Outputs

Altronix T3MK5SH2 TROVE3M3 Multi-Output Power Supply

Overview

The Altronix T3MK5SH2 represents a modular approach to distributed power delivery in mid-to-large scale security installations. This unit integrates seamlessly with Altronix's TROVE3M3 chassis and TMV2 modules, delivering configurable output capacity across 8 or 16 selectable outputs depending on module selection. Security integrators and system installers specify the T3MK5SH2 for applications requiring flexible load distribution, centralized battery backup coordination, and field-proven reliability in both indoor and outdoor deployments.

Key Features

• Configurable Output Architecture: 8 or 16 switchable outputs accommodate diverse load profiles and enable future expansion without complete system redesign
• TROVE3M3 Chassis Integration: Purpose-built for Altronix's TROVE3M3 enclosure system, ensuring mechanical and electrical compatibility with existing infrastructure
• TMV2 Module Support: Works in tandem with TMV2 modules for extended monitoring, supervision, and coordinated backup sequencing
• Battery Backup Capability: Integrated charging and battery management supports auxiliary power sourcing, critical for maintaining security system operation during utility failure
• Centralized Power Distribution: Consolidates multiple device requirements into a single managed supply point, reducing installation complexity and field service overhead
• Professional-Grade Construction: Built for 24/7 continuous duty in commercial security environments with thermal management and surge protection

Integration & Compatibility

The T3MK5SH2 is engineered as a core component within Altronix's TROVE modular ecosystem. It accepts configuration across the TROVE3M3 platform, allowing integrators to mix-and-match module options (TMV2 variants) based on project scope. This architecture supports staged system growth—starting with base 8-output configuration and scaling to 16 outputs by adding compatible modules. All outputs are individually supervised and can be assigned to backup battery groups, enabling granular control over which loads receive emergency power during brownout or blackout conditions.

Battery Backup & Supervision

The T3MK5SH2 includes integrated battery charging circuits suitable for sealed lead-acid or lithium auxiliary batteries (when paired with compatible modules). Each output carries independent supervision feedback, alerting system operators to load disconnection, short-circuit conditions, or battery depletion. This redundant reporting ensures that security systems remain aware of power infrastructure health at all times, preventing silent failures on critical feeds.

Field Deployment

Installers appreciate the T3MK5SH2's modular form factor, which fits standard TROVE3M3 enclosures used in equipment rooms, network closets, and outdoor cabinets. Connection points accept industry-standard terminal blocks, reducing training time and minimizing field error. The unit operates reliably across the temperature ranges encountered in commercial and light industrial security applications, making it suitable for both climate-controlled facilities and unheated outdoor installations.

Karl Wilson

I evaluated the Altronix T3MK5SH2 during the design phase of a 120-camera enterprise campus deployment. What impressed me most was the flexibility of the 8/16 output configuration—we started with 8 outputs for phase one, then added a second TMV2 module to reach 16 outputs as the system expanded. The modular approach reduced capital spend in year one while keeping growth paths clear.

Technical Highlights:

• Output Scalability: 8 or 16 independently supervised outputs allow you to right-size the initial deployment and add capacity without replacing the entire power backbone
• TROVE3M3 Ecosystem Fit: The T3MK5SH2 works natively with TMV2 modules and the TROVE3M3 chassis, creating a unified, coherent power distribution platform
• Battery Integration: Charging and backup sequencing is handled centrally, simplifying multi-load UPS management and reducing the number of standalone battery modules

Deployment Considerations:

• Plan module expansion early—adding a second TMV2 later is straightforward, but pre-wiring conduit saves retrofit work
• Verify that your facility power feed can support the full configured amp load; the T3MK5SH2 scales with module selection, so confirm electrical infrastructure before final sizing
• Use the supervision outputs to integrate with your PSIM or NMS platform—load reporting from each output group is invaluable for operational visibility during power events

For integrators building mid-scale security systems where flexibility and growth are priorities, the T3MK5SH2 delivers genuine operational efficiency. It's not a one-size-fits-all unit; it's a foundation that grows with your customer's needs. Recommended for campus environments, multi-building complexes, and any installation where modular expansion is planned.
