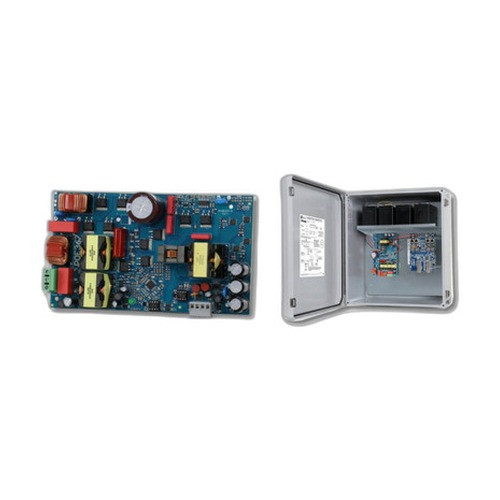

Altronix T2MK77F16QPT TROVE2M2 16-Door Access Controller

Altronix T2MK77F16QPT TROVE2M2 Multi-Door Access Controller

Overview

The Altronix T2MK77F16QPT is a TROVE2M2 platform multi-door access control system engineered for mid-to-large scale security deployments. This controller delivers regulated 24VDC power at 20A output capacity, supporting up to 16 doors with integrated battery backup via the included TMV2 module. Built for integrators and facility managers who require reliable, scalable access control without proprietary lock-in, the T2MK77F16QPT combines centralized power distribution with supervised door control in a compact industrial form factor.

Key Features

• 16-Door Capacity: Supports simultaneous control and monitoring of up to 16 access points from a single controller unit
• 24VDC @ 20A Output: Regulated direct current power supply rated for 20-amp continuous output, suitable for electromagnetic locks, maglocks, strike plates, and auxiliary security devices
• TMV2 Battery Backup Module Included: Integrated battery backup system ensures continuity of access control during mains power loss, critical for life-safety compliance and fail-safe/fail-secure configurations
• TROVE2M2 Platform Architecture: Modular design enables field expansion and integration with compatible Altronix access control modules and power distribution accessories
• Supervised Control Outputs: Multi-door supervision with real-time status reporting on each access point for audit trail and malfunction detection
• Industrial Power Regulation: Filtered and regulated DC output minimizes voltage sag and ground-loop interference common in multi-door installations
• DIN-Rail or Surface Mount Ready: Flexible installation options for panel, cabinet, or wall-mount deployment in control rooms, lobbies, or secure entry vestibules
• Field-Programmable Logic: Support for access control rules, door delay timings, and integrated alarm relay outputs without requiring external programmable logic controllers
• LED Status Indication: Real-time visual feedback for power, backup battery health, and per-door control status
• Scalable Architecture: Integrates with existing IP-based access management platforms and legacy wired door control networks

Integration & Compatibility

The Altronix T2MK77F16QPT T2MK77F16QPT integrates seamlessly with standard access control panels, card readers, keypads, and biometric devices operating on 24VDC. The multi-door relay outputs are compatible with electric strikes, magnetic locks, and shunt-trip breaker applications. TMV2 battery backup module maintains supervised power during outages, enabling fail-safe or fail-secure door positioning based on facility security policy. Integrators can extend capacity through stackable power distribution modules, allowing phased expansion from 16 doors to enterprise-scale multi-building deployments.

Package Contents

Each Altronix T2MK77F16QPT shipment includes the TROVE2M2 main controller unit and TMV2 battery backup module pre-integrated. Terminal blocks for 24VDC input, 16 supervised door outputs, and battery backup connections are factory-installed. Mounting hardware and DIN-rail clips are included.

Ted Perry

I've specified the Altronix T2MK77F16QPT on multiple mid-range access control deployments, and it consistently delivers the power budgeting and redundancy that facility managers demand. The 24VDC@20A specification gives you breathing room for electromagnetic locks and fail-safe solenoids without undersizing your backup battery. The included TMV2 module is a genuine advantage—you're not retrofitting batteries after installation.

Technical Highlights:

• Power Capacity: 24VDC @ 20A output supports high-inrush-current electromagnetic locks and multiple parallel strike plates without nuisance voltage sag
• Door Supervision: 16 discrete monitored outputs enable per-door tamper detection, forced-entry alerts, and integration with central security management dashboards
• Battery Backup Integration: TMV2 module provides hold-up power for life-safety egress and audit continuity during utility failure—no separate UPS tender

Deployment Considerations:

• Size the backup battery runtime based on your facility's access control demand profile: continuous fail-safe mode vs. supervised grace-period operation during outage
• Verify upstream electrical supply can source 24VDC at 20A continuously—overloaded facility power will limit scalability and battery charge cycles
• Configure door delay timings and relay logic early in commissioning; firmware changes in the field require panel power cycles and can disrupt live access

For security integrators handling 16-door-and-under installations, the T2MK77F16QPT eliminates vendor lock-in and gives you a proven platform. The TMV2 backup keeps it compliant with code-required hold-up power in one purchase. Solid choice for hospitals, corporate offices, and secure facilities where downtime isn't an option.
