Altronix R615DC616ULCB 16-Output Rack Power Supply

Altronix R615DC616ULCB 16-Output Rack Power Supply

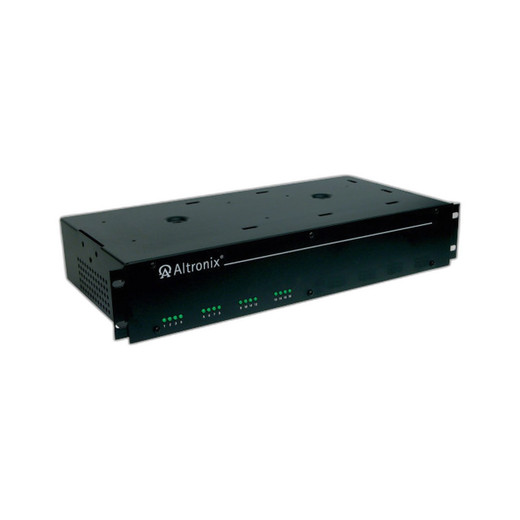

The Altronix R615DC616ULCB is a 2U rack-mount DC power supply delivering regulated 6-15VDC across 16 independently supervised outputs. Designed for CCTV and security infrastructure installations, this unit accepts 115VAC input and provides 6A maximum current per output with integrated PTC (Positive Temperature Coefficient) protection on each channel.

Key Features

• 16 PTC-protected outputs with individual supervision
• 2U rack-mount form factor for standard 19" equipment racks
• 6A per-output capacity for distributed camera and accessory power
• Adjustable output voltage from 6-15VDC to match device requirements
• PTC thermal protection prevents nuisance fuse failures and maintains circuit integrity
• 115VAC input for standard North American power availability
• Lifetime Limited Warranty

Applications

• Multi-camera security systems requiring centralized DC distribution
• Control room and NOC infrastructure with numerous auxiliary devices
• Access control and alarm system power consolidation
• CCTV installations with cameras, encoders, and peripherals

Specifications

• MPN: R615DC616ULCB
• Form Factor: 2U Rack Mount
• Input Voltage: 115VAC
• Output Voltage: 6-15VDC (adjustable)
• Number of Outputs: 16 PTC outputs
• Maximum Current: 6A per output
• Supervision: PTC per output
• Warranty: Lifetime Limited Warranty
