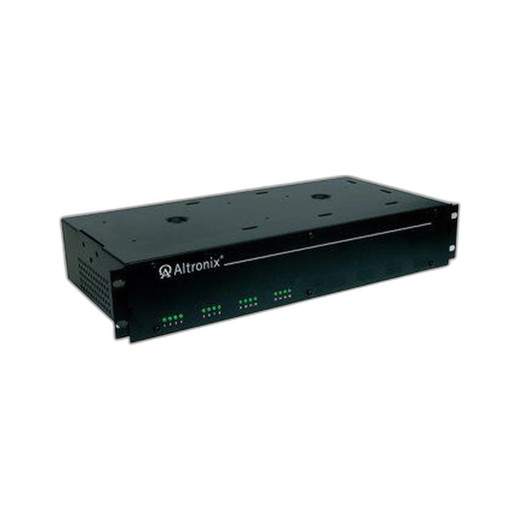

Altronix R615DC416ULCB 16-Output Rack Power Supply

Altronix R615DC416ULCB 16-Output Rack Power Supply

The Altronix R615DC416ULCB is a 2U rack-mount power distribution unit designed for multi-camera surveillance installations requiring independent power control per device. This 16-output supply delivers 6–15VDC at up to 4A per output, accepting standard 115VAC input for straightforward integration into existing security infrastructure.

Key Features

• 16 independent isolated outputs with individual current capacity of 4A
• 2U rack-mount form factor for seamless integration in security equipment racks
• Adjustable output voltage range from 6–15VDC to match diverse camera and accessory requirements
• PTC Class 2 supervision for circuit-level protection and fault detection
• Lifetime Limited Warranty covering unit defects
• 115VAC input compatibility with standard North American electrical infrastructure

Applications

• Multi-camera CCTV systems requiring distributed low-voltage power feeds
• Access control and alarm system power distribution in centralized security hubs
• Surveillance installations with mixed 6V, 12V, and 15V powered devices
• Rack-based security control centers managing 16+ networked endpoints

Specifications

• Form Factor: 2U Rack Mount
• Input Voltage: 115VAC
• Output Voltage: 6–15VDC (adjustable)
• Maximum Output Current: 4A per output
• Number of Outputs: 16
• Supervision: PTC Class 2
• Warranty: Lifetime Limited Warranty
