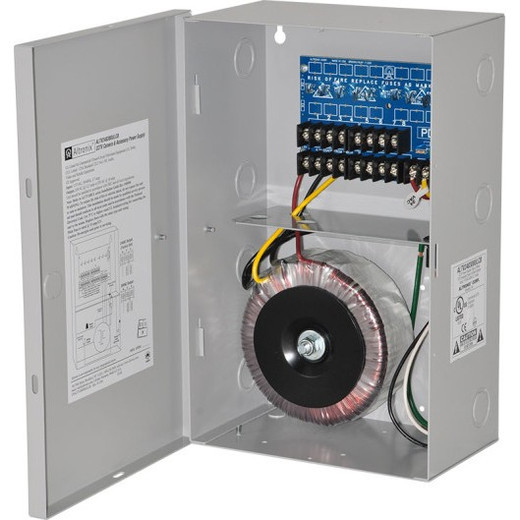

Altronix ALTV248300ULCB 8-Output 24VAC Power Supply

Altronix ALTV248300ULCB 8 Output CCTV Power Supply

The Altronix ALTV248300ULCB is a Class 2 rated 24VAC power supply designed to deliver reliable power distribution across multiple CCTV camera installations. With 8 independent outputs capable of supplying 12.5A at 24VAC, the ALTV248300ULCB supports mid-to-large scale analog camera systems requiring synchronized, regulated power delivery. The unit accepts standard 115VAC input and provides selectable 24/28VAC output, enabling compatibility with various camera and accessory voltage requirements.

Key Features

• 8 independent output channels for distributed camera power
• 12.5A total output capacity across all channels
• Selectable 24/28VAC output voltage for accessory compatibility
• Electronic supervision capability for fault detection and monitoring
• Class 2 rated construction for safe, low-voltage operation
• 115VAC single-phase input voltage
• Compact BC200 enclosure form factor
• Lifetime Limited Warranty

Applications

• Multi-camera CCTV systems in commercial facilities requiring centralized power distribution
• Analog security camera networks with 8 or fewer powered devices
• Access control and surveillance installations requiring synchronized 24VAC auxiliary power
• Integrated security infrastructure where electronic supervision provides system health monitoring
• Building automation environments requiring Class 2 low-voltage power distribution

Specifications

• MPN: ALTV248300ULCB
• Form Factor: Power Supply
• Input Voltage: 115VAC
• Output Voltage: 24/28VAC (selectable)
• Maximum Output Current: 12.5A
• Number of Outputs: 8
• Enclosure Dimensions: BC200
• Supervision: Electronic Supervision
• Ratings: Class 2
• Warranty: Lifetime Limited Warranty
