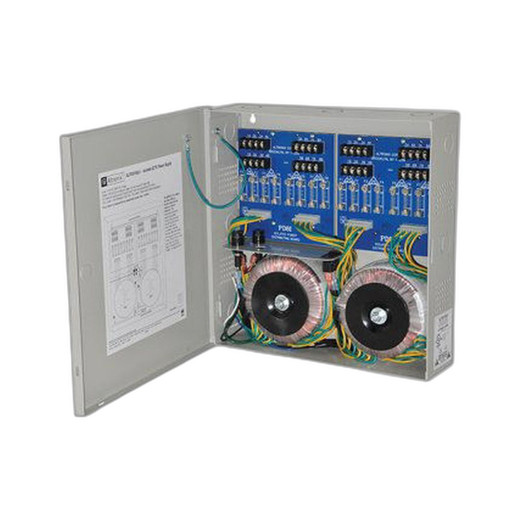

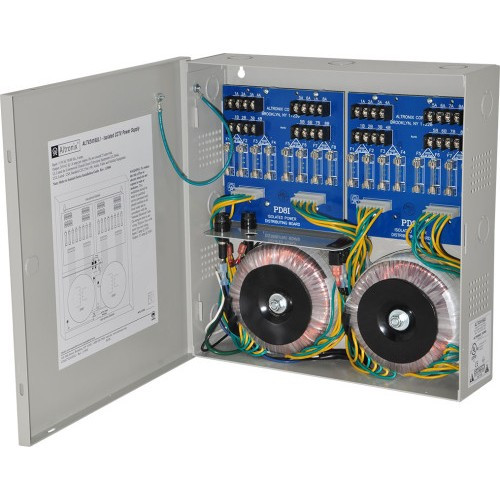

Altronix ALTV2416ULI 24VAC 25A 16-Output Isolated Power Supply

Altronix ALTV2416ULI 24VAC 25A 16-Output Isolated Power Supply

The Altronix ALTV2416ULI is a UL-listed 24VAC isolated power distribution unit designed for multi-camera CCTV installations and networked security infrastructure. Rated at 25A maximum output with 16 isolated circuits, the ALTV2416ULI provides independent 24VAC feeds suitable for analog and IP camera arrays, access control systems, and auxiliary security equipment. Wall-mount construction with BC300 enclosure dimensions enables efficient deployment in control rooms, equipment racks, and distributed security nodes.

Key Features

• 16 isolated output circuits at 24VAC
• 25A maximum current capacity
• UL-listed design for regulated installations
• 115VAC input to 24VAC output conversion
• Wall-mount form factor with BC300 enclosure
• Isolated outputs minimize ground loops and signal interference
• Lifetime Limited Warranty coverage

Applications

• Multi-camera analog CCTV systems requiring independent power feeds per camera
• IP surveillance infrastructure with redundant 24VAC auxiliary power distribution
• Access control panel power distribution and card reader circuits
• Intercom and audio-visual system power distribution across multiple zones
• Security equipment installations requiring isolated outputs to prevent ground-loop noise

Specifications

• Input Voltage: 115VAC
• Output Voltage: 24VAC
• Maximum Current: 25A
• Number of Outputs: 16
• Enclosure Model: BC300
• Warranty: Lifetime Limited Warranty
• UL Listed for regulated CCTV applications
