Altronix AL624E Linear Power Supply Charger

Altronix AL624E Linear Power Supply Charger

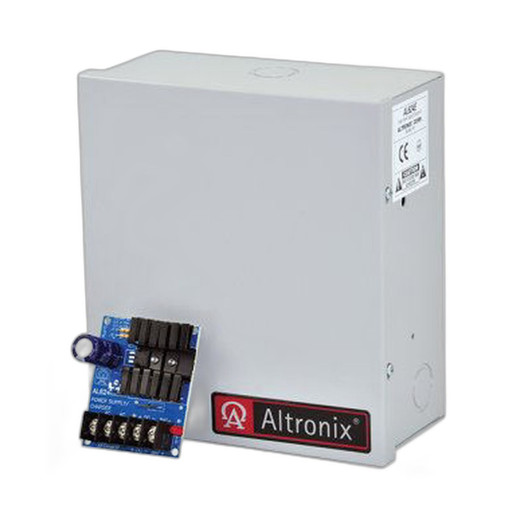

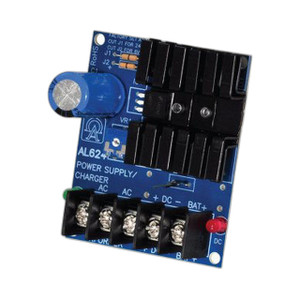

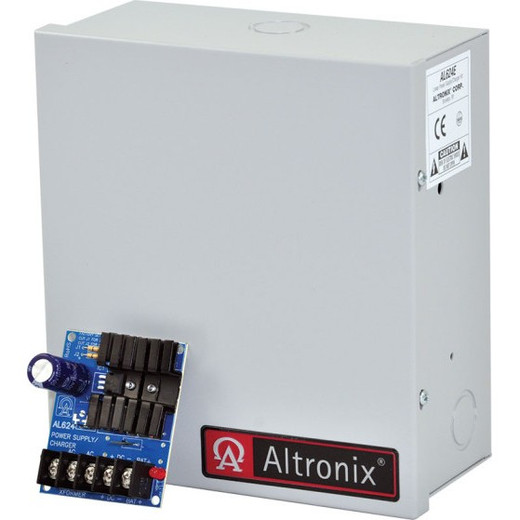

The Altronix AL624E is a selectable-output linear power supply and battery charger designed for access control, alarm, and security system applications. The unit accepts 16/24VAC input and provides switchable output of 6VDC, 12VDC, or 24VDC on a single output terminal, with maximum current ratings of 0.2A at 6VDC or 0.75A at 24VDC. The AL624E integrates battery backup capability, accommodating sealed lead-acid or gel-type 12VDC batteries up to 7AH with instantaneous failover upon AC loss.

Key Features

• Three selectable output voltages: 6VDC, 12VDC, or 24VDC
• Linear regulation for stable, noise-free DC output
• Integrated sealed lead-acid battery charger for up to 7AH backup batteries
• Instantaneous failover to battery on AC loss
• Compact form factor: 8.5"H × 7.5"W × 3.5"D
• Operating temperature range 0°C to 49°C
• CE European Conformity approval
• Lifetime Limited Warranty

Applications

• Access control system backup power
• Alarm system power and battery charging
• Door lock and gate operator control
• Security camera power with battery failover

Specifications

• Input Voltage: 16/24VAC
• Output Voltage: 6VDC / 12VDC / 24VDC (selectable)
• Maximum Current: 0.2A @ 6VDC / 0.75A @ 24VDC
• Battery Backup: Sealed lead-acid or gel-type 12VDC up to 7AH
• Operating Temperature: 0°C to 49°C (32°F to 120°F)
• Enclosure Dimensions: 8.5"H × 7.5"W × 3.5"D
• Approvals: CE
• Warranty: Lifetime Limited
