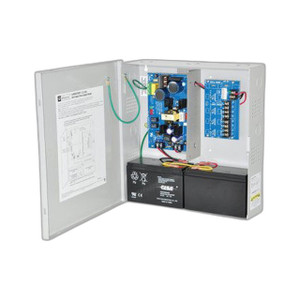

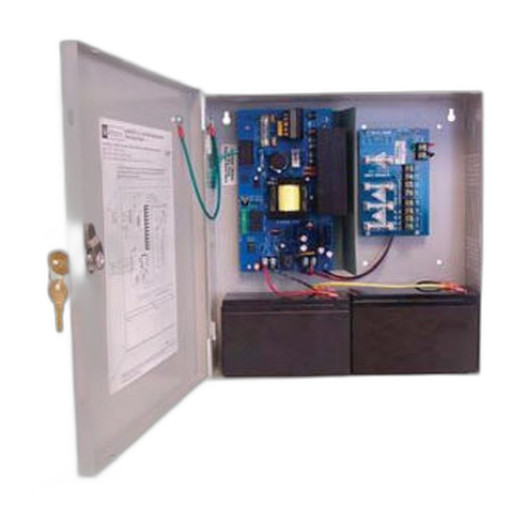

Altronix AL600ULPD4CB 4-Output 12/24VDC Power Supply

Altronix AL600ULPD4CB 4-Output 12/24VDC Power Supply

The Altronix AL600ULPD4CB is a UL Listed four-output power supply and charger designed for security and access control installations requiring redundant 12VDC or 24VDC distribution. The AL600ULPD4CB delivers 6A per output at 12VDC, with integrated battery backup and comprehensive supervision capabilities for unattended operation. This configuration supports both single-voltage and mixed-voltage deployments common in distributed access control and surveillance infrastructure.

Key Features

• Four independent 12VDC/12VDC outputs, each rated 6A maximum current
• Integrated battery backup for continued operation during AC mains failure
• UL Listed construction for compliance in commercial and institutional installations
• AC Fail supervision with real-time status monitoring
• Low Battery and Battery Presence supervision for early fault detection
• Selectable 12VDC or 24VDC operation per output configuration
• Lifetime Limited Warranty coverage

Applications

• Multi-door access control systems with battery-backed failsafe operation
• Distributed security camera power distribution with redundant output isolation
• Networked reader and control module power infrastructure in large facilities
• Emergency backup for critical security circuits during mains interruptions
• Mixed-voltage installations requiring both 12VDC and 24VDC supply rails

Specifications

• Product Type: Power Supply/Charger
• Output Voltage: 12VDC (configurable)
• Maximum Current: 6A per output @ 12VDC
• Battery Backup: Yes
• Supervision Functions: AC Fail, Low Battery, Battery Presence
• UL Listing: Yes
• Warranty: Lifetime Limited Warranty
