Altronix AL400X220 Single Output Power Supply/Charger 200VA

Altronix AL400X220 Single Output Power Supply/Charger 200VA

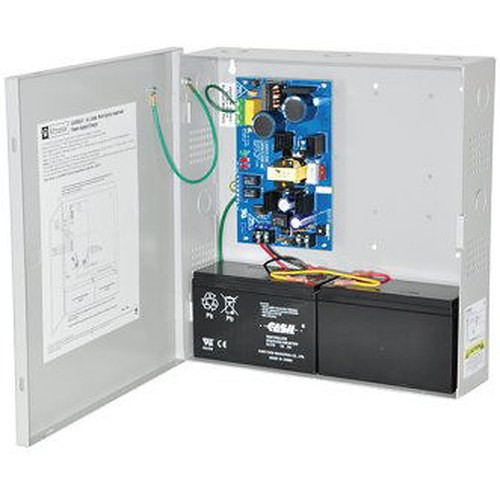

The Altronix AL400X220 is a 200VA single-output power supply and battery charger designed for security and access control systems requiring backup power. This unit accepts 220VAC input (198–256VAC operating range) and delivers selectable 12VDC or 24VDC output with integrated battery management for sealed lead acid or gel-type batteries. The AL400X220 mounts in a BC300 enclosure and provides instantaneous transfer to standby batteries during AC loss.

Key Features

• Single 12VDC or 24VDC output (user-selectable)
• 200VA capacity with 4A @ 12VDC or 3A @ 24VDC maximum current
• Built-in sealed lead acid and gel-type battery charger
• Instantaneous transfer to backup battery on AC failure
• AC Fail, Battery Fail, and Battery Presence supervision signals
• Wide input voltage acceptance (198–256VAC)
• 50/60Hz universal frequency support
• CE European Conformity approval

Applications

• Door access control and electric lock power backup
• Intercom and video surveillance system support
• Gate operator and barrier control systems
• Security system battery charging and failover

Specifications

• Input: 220VAC, 50/60Hz (198–256VAC working range)
• Output: 12VDC @ 4A or 24VDC @ 3A (selectable)
• Form Factor: BC300 Enclosure
• Number of Outputs: 1
• Battery Support: Sealed lead acid and gel-type
• Supervision: AC Fail, Battery Fail, Battery Presence
• Approvals: CE European Conformity
• Warranty: Lifetime Limited
