Overview

SKU: DS-7616NXI-I2/16P/4S-12TB
UPC: 842571127751
Condition: New
Availability: No Longer Available
Warranty 5-year warranty
Write a Review

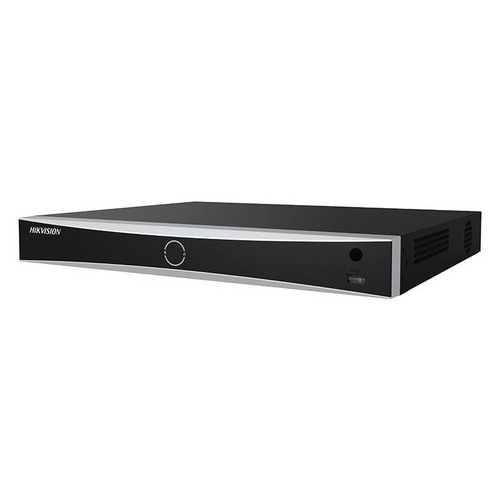

Hikvision DS-7616NXI-I2/16P/4S-12TB 16-Channel 12TB NVR

Businesses seeking a high-performance, intelligent surveillance solution with ample storage can leverage the Hikvision DS-7616NXI-I2/16P/4S-12TB NVR. …

Add to cart for sale price
Ships same business day
In stock

Quantity:

Adding to cart… The item has been added
Compatibility guidance available for your deployment
Certified experts for pre and post-sales support
Authorized sourcing and documentation support
Shipping and lead-time confirmation before install

Bryan

Talk to Bryan

200+ hrs training • U.S - based

Certified Expert • 877-277-7147

Hikvision DS-7616NXI-I2/16P/4S-12TB 16-Channel 12TB NVR

Your recommended setup

Review items below — quantities update pricing automatically.

Item Qty Status Price

Bundle Summary

Bundle Subtotal: $0.00
Optional Add-Ons: $0.00
Services: $0.00
Total: $0.00

Overview

SKU: DS-7616NXI-I2/16P/4S-12TB
UPC: 842571127751
Condition: New
Availability: No Longer Available
Warranty 5-year warranty
Description

Businesses seeking a high-performance, intelligent surveillance solution with ample storage can leverage the Hikvision DS-7616NXI-I2/16P/4S-12TB NVR. This 16-channel NVR supports exceptional 4K ultra-high definition recording, ensuring detailed footage for forensic analysis and secure monitoring. A pre-installed 12TB hard drive provides extensive storage capacity for continuous or motion-triggered recordings, making the DS-7616NXI-I2/16P/4S suitable for medium-sized deployments or applications with longer video retention requirements. The integrated 16-port PoE switch eliminates the need for separate power supplies for connected IP cameras, simplifying installation. Hikvision's AcuSense technology provides advanced motion detection with human and vehicle recognition, minimizing false alarms and enhancing security efficiency.

Key Features:

  • Integrated 16-Port PoE Switch: Powers IP cameras directly through the NVR, reducing cabling complexity and installation time.
  • 4K Ultra-HD Recording: Delivers exceptional image quality with superior detail on all channels for accurate identification and evidence collection.
  • AcuSense Technology: Utilizes deep learning algorithms to distinguish between humans and vehicles, minimizing false alarms from irrelevant motion.
  • Pre-installed 12TB HDD: Provides ample storage for video recordings, ideal for medium-sized deployments and longer retention periods.
  • H.265+ Video Compression: Reduces storage requirements and bandwidth consumption by up to 50% compared to H.264, optimizing storage efficiency.
  • Plug-and-Play Functionality: Simplifies setup with an intuitive interface, minimizing IT resource requirements.
  • Smart Search and Playback: Enables quick retrieval of specific events using intelligent search filters based on motion detection or timeframes.
  • Mobile and Remote Access: Enables live viewing and playback of recorded footage from anywhere via a smartphone or tablet using the Hikvision mobile app.

Compatibility:

  • Compatible with a wide range of Hikvision IP cameras and other ONVIF-compliant IP cameras.

Package Contents:

  • Hikvision DS-7616NXI-I2/16P/4S-12TB NVR
  • Power supply
  • Mouse
  • Quick Start Guide

Summary:

The Hikvision DS-7616NXI-I2/16P/4S-12TB NVR offers a compelling solution for businesses seeking a feature-rich, intelligent surveillance system with extensive storage capacity. The integrated PoE switch simplifies setup, while exceptional 4K image quality and H.265+ video compression optimize storage efficiency. With AcuSense technology for reduced false alarms, remote access capabilities, and a pre-installed 12TB HDD, the DS-7616NXI-I2/16P/4S-12TB offers a robust NVR solution for organizations seeking to enhance their security posture with intelligent features and ample storage.

Specifications
Frame Rate: 12fps
Human/Vehicle Analysis: False alarm filtering for 4-ch behavior (line crossing and intrusion) detection for network camera with resolution less than or equal to 4 MP.
IP Video Input: 16-ch
Video Outputs: 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
VGA Output: 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz;HDMI,VGA
CVBS Output: 1-ch, BNC (1.0 Vp-p, 75 Ω)
Incoming Bandwidth: 160 Mbps/256 Mbps
Audio Output: 1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 k Ω)
Decoding Format: H.265+,H.265,H.264+,H.264;H.265/H.265+/H.264/H.264+/MPEG4
Decoding Capability: 12 × 1080p
Synchronous Playback: 16-ch
Recording Resolution: 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Network Interface: 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
Connectivity: Wired
Standard: IEEE 802.3 af/at
RAID Type: No
SATA: 2;2 SATA interfaces for two 3.5-inch HDDs
Capacity: Up to 8 TB capacity for each HDD
USB Interface: Front panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0
Alarm In/Out: 4/1
Power Type: ≤ 280 W;100 to 240 VAC
Consumption: ≤ 15 W
Working Temperature: -10 °C to 55 °C (14 °F to 131 °F)
Working Humidity: 10 to 90 %
Chassis: 1U;1U chassis
Dimension (W × D × H: 380 × 315 × 51.5 mm ( 15.0"× 12.4" × 2.0")
Weight: ≤ 3 kg (6.6 lb)
