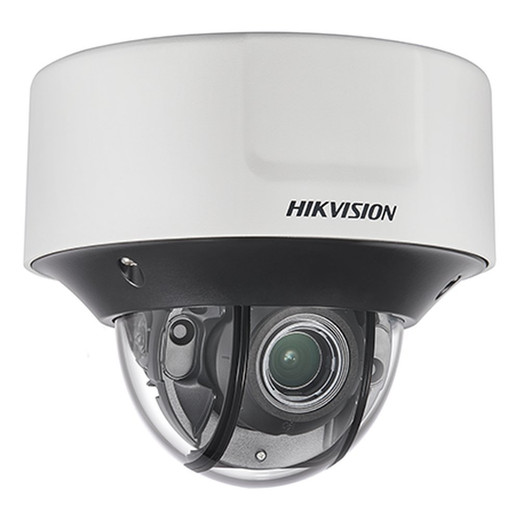

Hikvision DS-2CD5546G0-IZHS 4MP Varifocal Dome
Hikvision DS-2CD5546G0-IZHS 4MP Varifocal IR Outdoor Dome IP CameraThe Hikvision DS-2CD5546G0-IZHS is a professional-grade outdoor surveillance camera…
Hikvision DS-2CD5546G0-IZHS 4MP Varifocal Dome
$957.00
$499.99
Your recommended setup
Review items below — quantities update pricing automatically.
Item
Qty
Status
Price
Optional Add-Ons recommended
Services optional
Bundle Summary
Bundle Subtotal:
$0.00
Optional Add-Ons:
$0.00
Services:
$0.00
Total:
$0.00
Overview
SKU:
DS-2CD5546G0-IZHS
UPC:
842571117844
Condition:
New
Availability:
Usually Ships Same Business Day
Warranty
5-year warranty
Description
Hikvision DS-2CD5546G0-IZHS 4MP Varifocal IR Outdoor Dome IP Camera
The Hikvision DS-2CD5546G0-IZHS is a professional-grade outdoor surveillance camera engineered for enterprise security deployments. Delivering 4MP resolution at 30fps, this varifocal dome combines flexible optics with robust environmental hardening to provide reliable 24/7 monitoring across diverse outdoor settings. The motorized lens (2.8–12mm or 8–32mm options) enables dynamic field-of-view adjustment without repositioning hardware, optimizing coverage for evolving security needs.
Key Features
- 4MP (2560 × 1440) resolution with 30fps main stream performance
- Motorized varifocal lens with dual mount options and P-iris control
- Integrated IR illumination up to 30m (2.8–12mm) or 50m (8–32mm) at 850nm wavelength
- 140dB wide dynamic range with advanced imaging enhancement (BLC, HLC, 3D DNR, defog, EIS)
- Pan/tilt/rotate adjustment: 0–355° pan, 0–75° tilt, 0–355° rotation
- IP67 and IK10 rated for extreme weather (-40°C to 65°C operational range with -IZHS variant)
- PoE (802.3at Class 4) and 12VDC powered with low power consumption
- Heater option for sub-zero deployments
Technical Capabilities
The camera supports five configurable video streams with H.265/H.265+, H.264/H.264+, and MJPEG compression—enabling efficient bandwidth allocation for diverse client requirements. Multi-stream architecture allows simultaneous 20-channel live viewing with granular user access controls (32 users, 3 permission tiers). Advanced analytics include motion detection, line crossing, intrusion detection, region entrance/exit, unattended baggage detection, and people counting with dynamic face tracking via ROI masking.
Network security is comprehensive: HTTPS encryption, 802.1X EAP authentication, IP filtering, watermarking, and ONVIF/ISAPI protocol support ensure compliance with enterprise IT policies. Built-in microSD slot (up to 256GB) provides local backup alongside NAS/NFS integration and automatic network recording (ANR) failover.
Smart Detection & Integration
The embedded open platform supports up to 4 custom applications, enabling integration with third-party analytics libraries. Alarm triggering supports motion, tampering, network faults, and video exceptions, with configurable FTP/HTTP/email notifications and relay output control (24VDC 1A / 110VAC 500mA).
James Everett
This camera excels in applications requiring flexible zoom and precision focus without mechanical repositioning—critical for facilities monitoring large perimeters or transition zones. The 140dB WDR and low-light performance (0.002 Lux @ F1.2) ensure usable imagery across backlit scenarios and dusk-to-dawn operations. Dual lens options provide scalability: the 2.8–12mm lens suits general overview coverage, while the 8–32mm telephoto configuration addresses long-range identification tasks.
The -IZHS variant's -40°C operating floor makes it suitable for arctic/sub-arctic deployments. Network efficiency through H.265+ encoding and five-stream support reduces storage costs significantly in multi-camera installations. The integrated heater and connector-based construction minimize on-site assembly labor, while IP67/IK10 ratings and corrosion-resistant materials ensure 5+ year outdoor service life in harsh environments.
Product Documentation
Specifications
Frame Rate:
30fps
Sensor Type:
1/1.8" Progressive Scan CMOS
Min. Illumination:
Color: 0.002 Lux @ (F1.2, AGC ON), 0.005 Lux @ (F1.8, AGC ON), 0 Lux with IR
Shutter Speed:
1 s to 1/100,000 s
Slow Shutter:
Yes
Wide Dynamic Range:
140 dB
Day & Night:
IR Cut Filter
Angle Adjustment:
Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
Focus:
Auto, semi-auto, manual
Lens Type:
Motorized lens, 2.8 to 12 mm and 8 to 32 mm optional
Field of View:
2.8 to 12 mm, horizontal FOV 109.2° to 38.9°, vertical FOV 56.2° to 21.9°, diagonal FOV 134.5° to 45°;8 to 32 mm, horizontal FOV 37.7° to 15.2°, vertical FOV 21° to 8.6°, diagonal FOV 43.3° to 17.24°
Aperture:
F1.2 to 2.5;8 to 32 mm: F1.8, Constant F1.8 throughout the zoom range
Lens Mount:
Integrated
Aperture Type:
P-iris
IR Distance:
2.8 to 12 mm: up to 30 m; 8 to 32 mm: up to 50 m
Wavelength:
850 nm
Max. Resolution:
2560 × 1440
Main Stream:
50Hz: 25fps (2560 × 1440, 1920 × 1080, 1280 × 720),60Hz: 30fps (2560 × 1440, 1920 × 1080, 1280 × 720)
Sub-Stream:
50Hz: 25fps (704 × 576, 640 × 480),60Hz: 30fps (704 × 480, 640 × 480)
Third Stream:
50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480),60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
Fourth Stream:
50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480),60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
Fifth Stream:
50Hz: 25fps (704 × 576, 640 × 480),60Hz: 30fps (704 × 480, 640 × 480)
Custom Stream:
50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480),60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
Video Compression:
Main stream: H.265/H.264/H.265+/H.264+,Sub stream/third stream/fourth stream/fifth stream/custom stream: H.265/H.264/MJPEG
Video Bit Rate:
32 Kbps to 16 Mbps
H.264 Type:
Baseline Profile/Main Profile/High Profile
H.265 Type:
Main Profile
H.264:
Main stream support
H.265:
Main stream support
Scalable Video Coding (SVC:
H.264 and H.265 encoding
Region Of Interest (ROI:
Main stream/sub stream/third stream/fourth stream/fifth stream: 4 fixed regions for each stream, and dynamic face tracking
Environment Noise Filtering:
Yes
Audio Sampling Rate:
8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Audio Compression:
G.711/G.722.1/G.726/MP2L2/PCM/MP3
Audio Bit Rate:
64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/32Kbps(PCM)/ 8-320Kbps(MP3)
Simultaneous Live View:
Up to 20 channels
API:
ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, Ehome
Protocols:
TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
Smooth Streaming:
Yes
User/Host:
Up to 32 users, 3 levels: administrator, operator and user
Security:
Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, RTP/RTSP over HTT
Network Storage:
microSD/SDHC/SDXC card (256 GB), local storage and NAS (NFS,SMB/CIFS), ANR;Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
Client:
iVMS-4200, Hik-Connect, iVMS-5200, Hik-Central
Web Browser:
Plug-in required live view: IE8-11, Chrome 41-44, Mozilla Firefox30.0-51, Safari8.0+,Plug-in free live view: Chrome 45+, Mozilla Firefox52+
Alarm Trigger:
Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error
Day/Night Switch:
Day/Night/Auto/Schedule/Triggered by Alarm In
Target Cropping:
Yes
Picture Overlay:
LOGO picture can be overlaid on video with 128 × 128 24bit bmp format
Image Enhancement:
BLC, HLC, 3D DNR, Defog, EIS, distortion correction
Image Settings:
Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser
SNR:
≥52dB
Audio Support:
1-ch 3.5 mm input (line in), 1-ch 3.5mm output, mono
Alarm:
1-ch input, 1-ch output (up to 24 VDC 1A or 110 VAC 500 mA)
Video Outputs:
1Vp-p composite output (75 Ω/CVBS)
On-Board Storage:
Built-in micro SD/SDHC/SDXC slot, up to 256 GB
Hardware Reset:
Yes
Communication Interface:
1 RJ45 10M/100M/1000M Ethernet port,1 RS-485 interface (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
Power Output:
12 VDC, max. 200 mA
Interface Style:
Connector panel
Heater:
Heater -H: yes
Basic Event:
Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
Smart Event:
Line crossing detection, up to 4 lines configurable;Intrusion detection, up to 4 regions configurable;Region entrance detection, up to 4 regions configurable;Region exiting detection, up to 4 regions configurable;Unattended baggage detection, up to 4
Counting:
Counting
Linkage Method:
Trigger recording：memory card, network storage, pre-record and post-record;Trigger captured pictures uploading: FTP, SFTP, HTTP, NAS, Email;Trigger notification: HTTP, ISAPI, alarm output, Email
Firmware Version:
5.6.0
Web Client Language:
32 languages;English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditiona
General Function:
Anti-flicker, 5 streams and up to 5 custom streams, heartbeat, mirror, privacy masks, flash log, password reset via e-mail, pixel counter, HTTP listening
Embedded Open Platform:
Yes. The camera supports installation and running up to 4 extra applications.
Storage Conditions:
-30 °C to 65 °C (-22 °F to 149 °F), humidity 95% or less (non-condensing)
Startup And Operating Conditions:
-IZS: -30 °C to 65 °C (-22 °F to 149 °F), humidity 95% or less (non-condensing);-IZHS: -40 °C to 65 °C (-40 °F to 149 °F), humidity 95% or less (non-condensing)
Power Type:
12 VDC is recommended, 10 to 48 VDC; reverse polarity protection; two-core terminal block; PoE (802.3at, class 4)
Power Consumption And Current:
-IZS: With extra load: 12 VDC, 1.27 A, max. 15.2 W; PoE (802.3at, 42.5 V to 57 V), 0.36 A to 0.27 A, class 4;Without extra load: 12 VDC, 1.05 A, max. 12.6 W; PoE (802.3at, 42.5 V to 57 V), 0.3 A to 0.23 A, class 4;-IZHS: With extra load: 12 VDC, 1.4
Camera Dimension:
Camera: Φ162 × 140.3 mm (Φ6.4" × 5.5");With package: 251 × 215 × 189 mm (9.9" × 8.5" × 7.4")
Camera Weight:
Camera: 1450 g (3.2 lb.);With package: 1950 g (4.3 lb.)
EMC:
IC: IC-VoC(ICES-003 Issue 7:2020), FCC: FCC-SDoC(ANSI C63.4,FCC Part15 sub B), KC: KN 301489-1,KN 301489-17,RRA NOTICE 2017-14(2017.12.05),RRA NOTICE 2017-19(2017.12.28), CE: CE-EMC(EN 50130-4:2011+A1:2014,EN 55032:2015,EN 61000-3-2:2014,EN 61000-3-3
Safety:
CB: IEC 60950-1, UL: UL 60950-1:2014,CAN/CSA C22.2 No. 60950-1-07:2014
Environment Rating:
CE: CE-RoHS(RoHS Directive 2011/65/EU+2015/863);REACH SVHC: Regulation (EC) No 1907/2006
Protection:
Ingress protection: IK10 (IEC 62262:2002), IP67 (IEC 60529-2013)
Product Type:
Dome
Connectivity:
Wired
Resolution:
4MP
Night Vision:
IR
Form Factor:
Dome
Built-in IR:
Yes
Day/Night:
Yes
Analytics:
People Counting, Facial Recognition
HTTPS Encryption:
Yes
