Hanwha XNV-6080R 2MP Outdoor Vandal-Resistant Dome

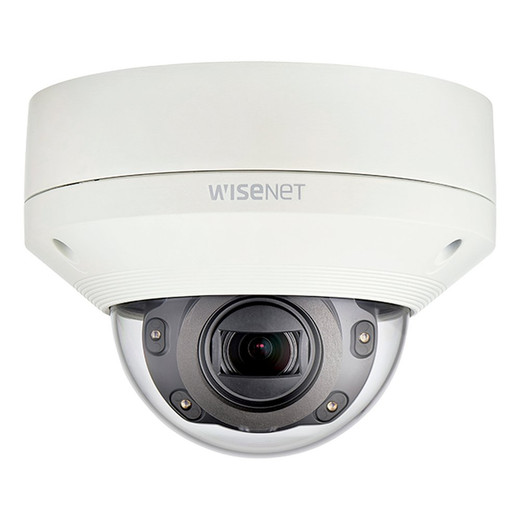

Hanwha XNV-6080R 2MP Outdoor Vandal-Resistant Dome IP Camera

The Hanwha XNV-6080R is a professional-grade 2MP dome camera engineered for demanding outdoor surveillance environments. Built with IK10 vandal-resistant construction and IP67/IP66 weatherproofing, this camera delivers reliable performance in high-risk areas including corporate campuses, retail facilities, transportation hubs, and public infrastructure. The motorized 2.8–12mm varifocal lens with 4.3x zoom provides flexible field-of-view adjustment from 119.5° to 27.9° (horizontal), enabling precise coverage customization without camera repositioning.

Key Features

• 2MP 1/2.8" CMOS sensor with 60fps H.265/H.264 streaming
• Motorized varifocal lens (2.8–12mm) with auto iris and simple focus control
• IR LED night vision (0 lux B/W capability) with 0.5m minimum object distance
• 150dB Wide Dynamic Range (WDR) with additional backlight compensation (BLC, HLC, DWDR, SSDR)
• Advanced analytics: defocus detection, face detection, motion detection, virtual line crossing, tampering alerts, and audio detection
• Pan/Tilt/Rotate capability (0–354°/0–67°/0–355°)
• PoE (IEEE 802.3af Class 3) power with 12VDC and 24VAC alternatives; max 12.95W consumption

Technical Specifications

The camera supports H.265, H.264, and MJPEG compression with configurable bitrate control (CBR/VBR). Dual microSD/SDHC/SDXC slots accommodate up to 512GB edge storage. Unicast and multicast streaming supports up to 20 concurrent users with 10 simultaneous video profiles. ONVIF Profile S/G/T compliance ensures interoperability with third-party management platforms. Color minimum illumination is 0.015 lux (F1.4, 1/30sec); B/W operation extends to 0.0015 lux with IR LED off. Operating temperature range spans –40°C to +55°C with <90% RH tolerance, suitable for extreme climates.

Security & Intelligence

HTTPS/SSL encryption, digest login authentication, IP address filtering, and 802.1X EAP-TLS support secure network integration. The camera incorporates WiseStream II smart codec technology for adaptive bitrate optimization. Integrated motion detection (8 configurable polygonal zones) and privacy masking (32 zones with color/mosaic options) provide flexible configuration. Alarm triggers include analytics events, network disconnection, and external input, with FTP/email notification and NAS recording capabilities.

Applications

Ideal for outdoor perimeter security, entrance monitoring, parking lot surveillance, and campus-wide deployments. The combination of vandal resistance, day/night capability, and advanced analytics makes it suitable for unattended facilities requiring 24/7 coverage with minimal maintenance.

Ted Perry

The XNV-6080R balances robust outdoor durability with practical surveillance intelligence. Its IK10 vandal rating and weatherproof construction eliminate concerns about environmental damage, while 150dB WDR performance handles the lighting transitions inherent to outdoor scenes. The motorized varifocal lens reduces deployment complexity by allowing remote zoom adjustment, critical for facilities where physical camera access is limited or costly.

H.265 codec support with WiseStream II optimization significantly reduces bandwidth and storage requirements compared to standard H.264, an important consideration for large-scale deployments. The 60fps capability via H.265/H.264 ensures smooth motion capture for forensic analysis. Built-in analytics—particularly digital auto-tracking and virtual line detection—add intelligence without requiring external video management software investment, making this camera suitable for both managed and self-contained deployments.
