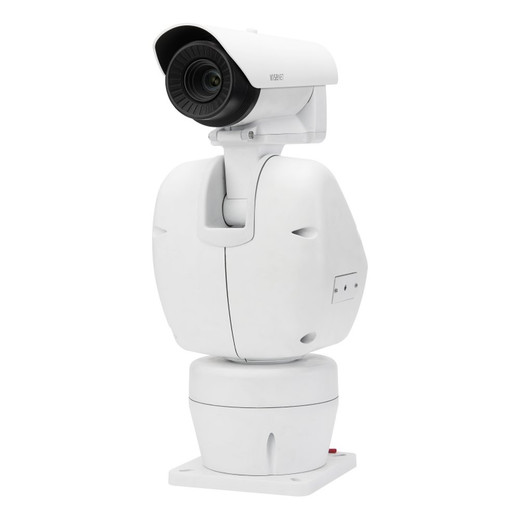

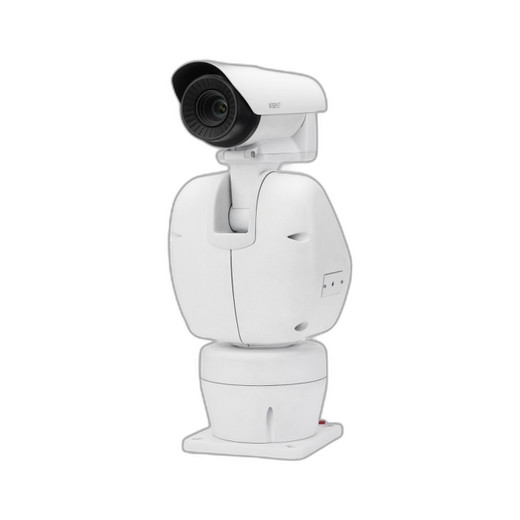

Hanwha TNU-4041T Thermal PTZ Camera 640x480

Hanwha TNU-4041T Thermal PTZ Camera 640x480

The Hanwha TNU-4041T is a professional-grade thermal PTZ camera engineered for long-range surveillance in demanding security environments. Featuring a 640x480 uncooled microbolometer thermal sensor with <50mK thermal sensitivity, this camera delivers precise thermal imaging across day and night conditions, penetrating fog, smoke, and complete darkness where conventional cameras fail. The 19mm fixed focal lens with F1.0 aperture and 32° horizontal field of view enables effective monitoring from 11+ meters, while full PTZ functionality provides dynamic area coverage and investigative capability.

Key Features

• 640x480 thermal imaging with <50mK NETD sensitivity
• 360° endless pan with pan speeds up to 120°/sec; -90° to +40° tilt range
• 300 presets with ±0.3° accuracy for rapid position recall
• H.265/H.264 and MJPEG compression with WiseStream II smart codec
• Advanced analytics: motion detection, temperature change alerts, intrusion detection, loitering, virtual line crossing, and audio detection
• IP66/IK10/NEMA4X rated outdoor-rated metal construction for extreme environments
• PoE power (up to 84W with heater) for simplified deployment
• Digital image stabilization with built-in gyro sensor
• Multiple thermal color palettes: whitehot, blackhot, rainbow, sepia, and custom options
• Supports up to 10 simultaneous streaming profiles with unicast and multicast

Technical Specifications

Thermal Imaging: Uncooled microbolometer, 17µm pixel size, fixed 19mm focal length (F1.0), 39.2° diagonal field of view. Pan speed range: 0.025°–120°/sec; tilt speed: 0.025°–40°/sec. Preset accuracy of ±0.3° ensures repeatable positioning for automated monitoring workflows.

Streaming & Encoding: H.265/H.264 (Main/Baseline/High profiles) and MJPEG at up to 30fps (60Hz). Supports 20 unicast users plus multicast streaming. Edge storage via microSD/SDHC/SDXC (up to 256GB). Gigabit Ethernet with comprehensive protocol support: IPv4/IPv6, TCP/IP, UDP, RTSP, HTTPS/SSL/TLS, SNMP v1/v2c/v3, ONVIF Profile S/G/T, and Wisenet open platform.

Environmental Durability: IP66/IK10 rating with aluminum construction; rated -40°C to +55°C operational (-50°C to +60°C storage). Heater element maintains thermal performance in extreme cold. Power consumption: 62W baseline (heater off), 84W maximum (heater on) via 24VAC input.

Security & Analytics: User authentication via HTTPS/Digest login, IP filtering, 802.1X (EAP-TLS/EAP-LEAP). 8-zone polygon motion detection with directional analysis. Advanced event triggers include analytics-based alarms, network disconnect alerts, and FTP/email notification with SD card or NAS recording.

Applications

• Critical infrastructure and perimeter security monitoring
• Border and maritime surveillance with long-range thermal detection
• Industrial facility monitoring in smoke/fog-prone environments
• Fire detection and temperature anomaly alerting
• Airport and seaport access control and threat detection
• Utility and power generation facility protection
• Large commercial and government complex surveillance

Ted Perry

The TNU-4041T represents a mature thermal PTZ platform optimized for outdoor long-range applications where thermal detection provides critical advantages over visible-light alternatives. The <50mK thermal sensitivity and fixed 19mm focal length prioritize detection range over zoom flexibility—a deliberate trade-off appropriate for perimeter and fixed-coverage scenarios. The 360° endless pan with sub-degree accuracy and 300 presets supports complex multi-zone patrol patterns and rapid response to triggered events.

Integration of advanced analytics—particularly temperature change detection and directional motion analysis—elevates this beyond simple thermal monitoring to intelligent threat assessment. IK10 impact rating combined with IP66 sealing ensures field durability, while the integrated heater addresses thermal imaging challenges in sub-freezing climates. WiseStream II codec optimization reduces bandwidth demands for continuous recording, critical in large-scale deployments.

ONVIF and Wisenet API support ensure flexible integration into mixed-vendor VMS environments. This camera suits organizations requiring unattended long-range thermal surveillance with robust automation and reliability.
