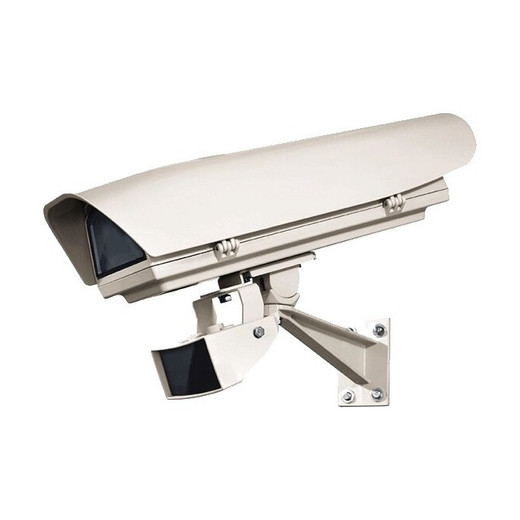

Hanwha SHB-V-3200HPR Aluminum Camera Housing

Hanwha SHB-V-3200HPR Aluminum Camera Housing

The Hanwha SHB-V-3200HPR is a rugged side-opening aluminum camera housing engineered for reliable surveillance in harsh outdoor environments. Built to withstand extreme weather, salt fog, and mechanical impact, this IP66-rated enclosure combines industrial-grade protection with practical maintenance access, making it an ideal solution for coastal, industrial, and high-temperature deployment scenarios.

Key Features

• Side-opening aluminum construction (RAL9002) for quick installation and servicing
• IP66 weatherproof rating with three M16 cable glands
• IK10 impact resistance (excepting front glass) for vandal-prone areas
• Integrated 6W IR illuminator for reliable night vision surveillance
• Demisting capability with forced hot air (5W) for fog and condensation control
• Large clear glass window (118×75mm) for optimal lens performance
• Extended operating range: -10°C to +60°C with 5–95% relative humidity tolerance
• Salt fog tested to 1000 hours (ISO9227) for superior corrosion resistance

Technical Specifications

Internal Dimensions: 100×70mm (3.9×2.7in) usable area with 250mm (9.8in) usable length accommodates compact to mid-size camera modules.

Power Management: Accepts PoE Class 3 input (12.95W) with flexible power distribution—up to 7W available for the camera under PoE Class 2, or 13W under PoE Class 4 (PoE+). The integrated 6W IR illuminator and 5W demisting fan ensure reliable operation across temperature extremes. Note: PoE/PoE+ injector not included.

Environmental Protection: Operates reliably from -10°C to +60°C (14°F to 140°F) with humidity tolerance from 5% to 95%. Salt fog resistance certified to 1000 hours per ISO9227.

Certifications & Compliance

• Electrical Safety: EN60950-1, IEC60950-1, EN62368-1, IEC62368-1
• Electromagnetic Compatibility: EN50130-4, EN61000-6-3, EN55032 Class B, FCC Part 15 Class B, ICES-003 Class B
• Outdoor Installation: EN60950-22, IEC60950-22
• Impact Protection: IK10 (EN62262)
• Weatherproofing: IP66 (EN60529)
• UL Certification: cULus Listed, TYPE 4X, EAC

Ideal Applications

Perfect for coastal surveillance, industrial facilities, high-temperature environments, and any deployment requiring robust environmental protection and night vision capability.
