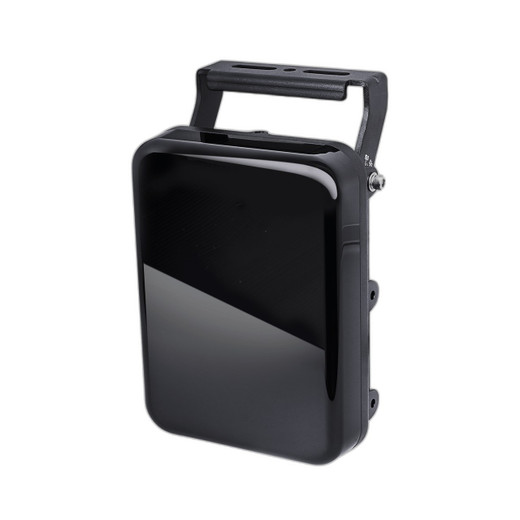

Vivotek CM48I8-180 IR Illuminator 850nm

Vivotek CM48I8-180 IR Illuminator 850nm

The Vivotek CM48I8-180 is a professional-grade infrared illuminator designed to extend night vision surveillance capabilities in low-light and zero-light environments. Operating at 850nm wavelength with a 40-meter effective range, this compact unit integrates seamlessly with IP surveillance cameras to deliver reliable monitoring in outdoor and harsh-environment deployments where ambient light is insufficient or unavailable.

Key Features

• 850nm infrared wavelength for optimal low-light and nighttime surveillance
• 40-meter effective IR range for comprehensive coverage
• 180-degree variable angle coverage with field-adjustable beam patterns
• Continuous Variable Angle (CVA) technology—no tools or reconfiguration required
• IP68 rating for complete dust and water immersion protection
• IK10 impact resistance rating for high-vandalism and harsh-weather environments
• Dual power input: 12-24V DC (±10%) or 24V AC (50/60Hz, ±10%)
• 5-year manufacturer warranty

Technical Specifications

The CM48I8-180 operates across a wide voltage range, supporting both DC and AC power sources for maximum flexibility in existing security infrastructure. Its IP68 environmental rating ensures the unit withstands complete submersion and prolonged exposure to dust, making it suitable for coastal, industrial, and high-moisture applications. The IK10 impact resistance rating provides exceptional durability against physical damage, vandalism, and severe weather conditions.

The adjustable 180-degree beam pattern allows installers to customize IR coverage without disassembling the unit or reconfiguring connected surveillance systems. This field-adjustability reduces installation time and enables precise directional targeting for perimeter security, entry points, and sensitive areas.

Ideal Applications

• Outdoor perimeter and boundary monitoring
• Industrial and manufacturing facility surveillance
• Coastal and high-moisture environments
• High-vandalism zones requiring robust hardware
• Critical infrastructure and government security deployments
• Parking facilities and transportation hubs
• Remote and off-grid surveillance installations

James Everett

The CM48I8-180 addresses a critical gap in 24/7 surveillance infrastructure by delivering reliable IR illumination across 40 meters without introducing visible light that could compromise security or create light pollution. The 850nm wavelength is optimized for both standard monochrome and color+IR capable cameras, offering compatibility with most modern surveillance systems.

The dual power input design is particularly valuable in enterprise deployments where equipment must integrate with existing PoE infrastructure alongside traditional 12/24V power supplies. This flexibility eliminates the need for separate power conditioning and reduces installation complexity. The IK10 and IP68 ratings position this unit in the professional-grade category, making it suitable for mission-critical applications where equipment failure is not an option.

The field-adjustable CVA technology represents a practical engineering solution that reduces on-site configuration time and minimizes the need for technician callbacks due to beam pattern misalignment—a common issue in fixed-angle IR illuminators.
