Datalogic Gryphon GD4590-WH 2D Barcode Scanner

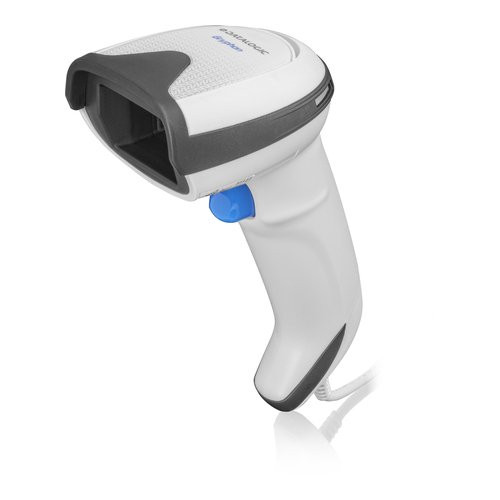

Datalogic GD4590-WH Barcode Scanner

The Datalogic GD4590-WH is a general-duty handheld 2D Area Imager from the Gryphon 4500 series, engineered for enterprise data capture environments that demand speed, accuracy, and durability. Rated IP52 with a 1.8 m (6.0 ft) drop specification to concrete, this scanner handles the daily rigors of commercial and industrial use. At 161 g (5.7 oz), the unit stays comfortable through extended scanning sessions.

The Gryphon 4500 series features Datalogic's 2D Area Imager technology for snappy omnidirectional reading of all standard barcode symbologies. Connectivity options include USB, RS-232, Keyboard Wedge, providing integration flexibility across POS and enterprise host systems. Datalogic's patented Green Spot technology provides visual good-read confirmation directly on the barcode, supplementing the audible beep in noisy environments.

Key Features

• Megapixel 2D imaging engine reads 1D, 2D, postal, and composite barcodes omnidirectionally
• Patented Green Spot technology provides visual good-read confirmation directly on the code
• Motionix motion-sensing technology automatically switches between handheld and presentation scanning modes
• Warm white illumination reduces eye strain during extended scanning sessions
• Datalogic Aladdin configuration software enables rapid deployment across enterprise scanner fleets

Typical Applications

• Retail point-of-sale checkout
• Healthcare patient identification and medication verification
• Document management and office mailroom
• Light manufacturing work-in-process tracking
• Library and educational asset management

Technical Specifications

• Scan Technology: 2D Area Imager
• Environmental Protection: IP52
• Drop Rating: 1.8 m (6.0 ft) to concrete
• Operating Temperature: 0 to 50 C / 32 to 122 F
• Connectivity: USB, RS-232, Keyboard Wedge
• Decode Capabilities: 1D, 2D, Postal, Composite, Stacked, Digimarc, QR, Data Matrix, Aztec, MaxiCode, PDF417, MicroPDF417,...
