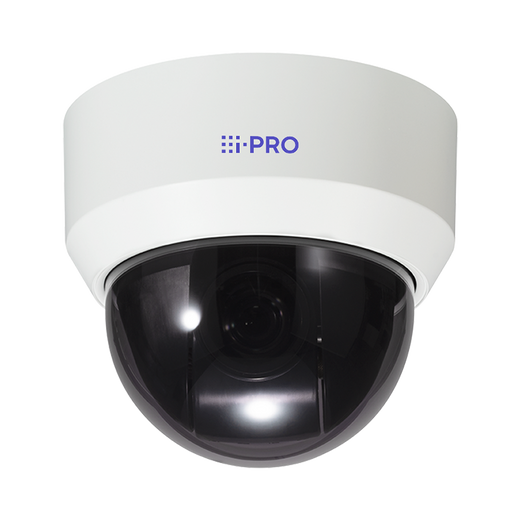

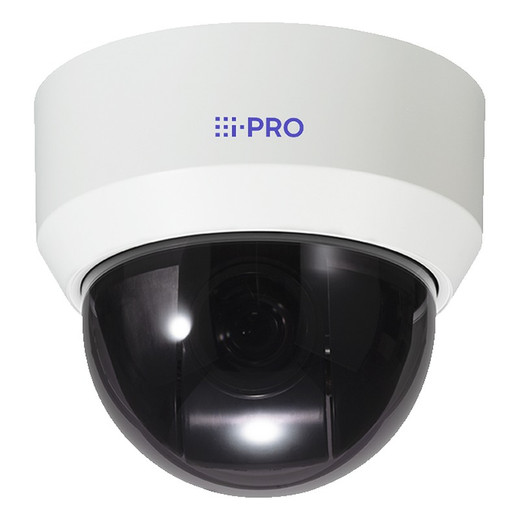

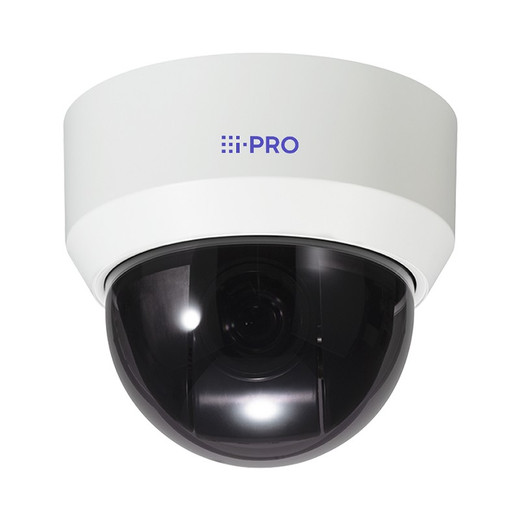

i-PRO WV-S65302-Z2G (2MP) Outdoor AI PTZ Dome Network IP Camera

i-PRO WV-S65302-Z2G

i-PRO WV-S65302-Z2G Overview

The i-PRO WV-S65302-Z2G is a high-performance outdoor PTZ network camera designed for medium-to-long-range surveillance where operators need both wide situational awareness and detailed investigative zoom. Built on the S-series platform with an integrated AI engine, the camera delivers 2MP (1920 × 1080) video while supporting intelligent image optimization and automated scene adjustments. A 21× optical zoom lens significantly extends monitoring reach compared with compact PTZ cameras, enabling detailed inspection of activity across parking lots, campuses, and municipal infrastructure.

The camera incorporates advanced imaging features including Intelligent Auto processing and Super Dynamic technology with up to 144 dB dynamic range. These capabilities help maintain detail in challenging lighting environments such as entrances, roadways with headlights, or mixed shadow and sunlight conditions. The unit is engineered for outdoor deployment with IP66 weather resistance, IK10 vandal protection, and built-in hardware security using a FIPS 140-2 Level 3 compliant secure element.

Optical Zoom and Coverage Flexibility – What Actually Matters

The defining feature of the WV-S65302-Z2G is its 21× optical zoom system. This range allows a single camera to monitor wide areas and then zoom in for investigative detail when activity occurs. Optical zoom preserves image resolution and pixel density compared with digital zoom, which is essential for recognition and identification tasks at distance.

This zoom capability makes the camera particularly useful in environments where targets can move across large spaces—such as transit stations, large parking facilities, school campuses, or municipal surveillance zones. Operators can maintain a wide patrol view and quickly zoom to specific points of interest without deploying multiple fixed cameras.

Image Quality and Low-Light Performance

The camera uses a 1/2.8-inch CMOS sensor and supports full HD resolution up to 1920 × 1080. Low-light sensitivity enables color imaging down to approximately 0.03 lux and extended exposure color capture down to roughly 0.003 lux depending on configuration. In black-and-white mode, sensitivity can reach approximately 0.0011 lux. These levels allow the camera to maintain usable detail during nighttime monitoring or in poorly lit environments.

Super Dynamic technology provides up to 144 dB of dynamic range, allowing the system to retain visibility across scenes containing both bright highlights and deep shadows. Additional image enhancement features include adaptive black stretch, fog compensation, and digital noise reduction, which collectively improve visibility in difficult environmental conditions.

PTZ Operation and Surveillance Control

As a PTZ camera, the WV-S65302-Z2G allows operators to dynamically reposition the camera for active monitoring. The durable pan-tilt gear mechanism is designed for continuous outdoor operation and repeated movement during patrol tours or manual control. PTZ functionality enables guard tours, event-triggered camera movement, and rapid zoom-in investigation when security events occur.

This operational flexibility reduces the number of fixed cameras required in many deployments while allowing security personnel to actively investigate incidents as they unfold.

Network Connectivity and Edge Recording

The camera integrates with IP surveillance systems through an RJ-45 Ethernet interface supporting 10Base-T and 100Base-TX network connections. Video can be encoded using H.265, H.264, or MJPEG formats with multiple streaming resolutions including 1920 × 1080 and 1280 × 720. Smart coding features help optimize bandwidth usage while maintaining image quality.

Edge recording is supported through optional microSDXC memory cards up to 256 GB, enabling local storage for scheduled recording, alarm recording, or failover capture if the network connection is interrupted. Audio input and output support enables microphone integration and two-way audio communication where required.

Security Architecture and Compliance

The WV-S65302-Z2G includes enterprise-grade security architecture designed to protect network infrastructure and device integrity. A built-in secure element compliant with FIPS 140-2 Level 3 standards protects cryptographic operations and device identity. The camera supports signed firmware, HTTPS encryption, IEEE 802.1X authentication, and device certificates for secure network integration. The model is also NDAA compliant, making it suitable for government and regulated infrastructure deployments.

Environmental Durability

Designed for outdoor installations, the camera carries IP66 weather protection and IK10 impact resistance. These ratings protect the device from dust, heavy rain, and vandalism attempts. The rugged PTZ mechanism and sealed housing enable installation on poles, building exteriors, and transportation infrastructure exposed to harsh environmental conditions.

When This Is the Right Choice

The WV-S65302-Z2G is well suited for campuses, retail centers, parking facilities, transportation hubs, and municipal surveillance networks where operators require flexible PTZ control and longer optical reach than compact 10× PTZ models.

When It Is Not the Right Choice

If surveillance requires ultra-long-distance observation across extremely large areas such as ports, airports, or border monitoring, a larger PTZ platform with 30× or greater optical zoom may provide better coverage.
