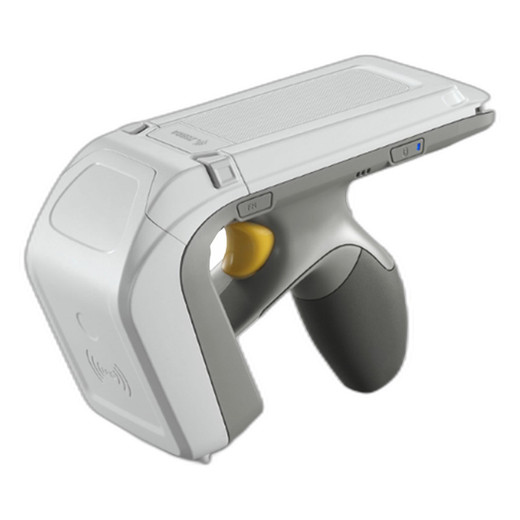

Zebra RFD9031-G30G700-US Ultra-Rugged UHF RFID Sled (US)

Zebra RFD9031-G30G700-US

Overview

The Zebra RFD9031-G30G700-US is an ultra-rugged UHF RFID sled designed to add high-performance RFID capability to compatible Zebra mobile computers and supported third-party smartphones. In customer terminology, these devices are often referred to as handheld RFID readers; however, per manufacturer classification, the RFD9031 is a sled form factor that physically and electronically integrates with a host device. This architecture allows organizations to leverage existing mobile computing investments while adding EPC Gen2 RFID functionality. The unit is engineered for demanding environments including warehouse operations, transportation and logistics hubs, manufacturing floors, and government asset tracking applications. With dual IP65 and IP67 sealing and a 6 ft (1.8 m) drop-to-concrete specification, it is built for sustained daily exposure to dust, spray, vibration, and impact. A removable 7,000 mAh PowerPrecision+ Li-Ion battery supports extended shifts without constant recharge cycles.

Frequency Band and Read Performance - What Actually Matters

This US configuration operates within the 902-928 MHz UHF band with adjustable RF output from 0-30 dBm EIRP. It supports EPC Class 1 Gen 2 and EPC Gen2 v2 standards and delivers read rates exceeding 1,300 tags per second. In operational terms, this throughput enables rapid cycle counts, pallet validation, work-in-progress tracking, and exception-based inventory management without creating scanning bottlenecks. The nominal read range of approximately 22 ft (6.7 m) aligns with controlled aisle reads, staging lanes, and cart-level interrogation. Adjustable transmit power allows tuning of the RF field to minimize stray reads in dense tag environments or narrow picking aisles.

Antenna Architecture and Read Zone Modeling

The RFD9031 utilizes Zebra proprietary radio technology optimized for handheld sled integration. With a nominal 22 ft read range, deployment design should focus on defined read zones rather than wide-area yard coverage. This profile is appropriate for shelf-level audits, kitting operations, and dock staging workflows. It is not intended for extended gate or portal scenarios that require higher EIRP and long-range directional antenna geometries. RF output control enables engineers to refine read envelopes based on tag density and environmental reflectivity.

Connectivity and Integration

The sled supports Bluetooth 5.3 connectivity with Android, iOS, and Windows host devices and includes SPP, HID, and Apple iAP2/MFi profiles. Integrated Wi-Fi 6 (802.11 ax/ac/a/b/g/n, 2x2 MU-MIMO) allows over-the-air firmware updates and remote configuration without requiring a permanently attached host computer. Host connection options include eConnex 8-pin electronic interface, Bluetooth, and USB cable cup. Security protocols supported include TKIP, AES, EAP-TLS, EAP-PEAPv2, EAP-TTLS, EAP-FAST, PEAP, and LEAP. This multi-layer connectivity model supports cradle-based Ethernet management and scalable fleet administration.

Environmental Ratings

The unit carries IP65 and IP67 sealing for protection against dust ingress and water exposure. It withstands multiple 6 ft (1.8 m) drops to concrete and 500 tumble cycles (1,000 drops at 0.5 m). Operating temperature ranges from -4 F to 131 F (-20 C to 55 C), with storage from -40 F to 158 F. ESD protection is rated to +/-15 kV air discharge and +/-8 kV direct discharge, supporting deployment in high-static industrial facilities and non-climate-controlled environments.

Deployment Considerations

Battery lifecycle planning should account for the 7,000 mAh removable battery architecture and available single-slot or multi-slot charging cradles. Wi-Fi 6 remote management reduces touch labor during firmware rollouts. RF power tuning is critical in high-density SKU environments to avoid cross-aisle tag capture. For applications requiring read distances significantly beyond 22 ft, a longer-range platform would be required.

When This Is the Right Choice

This model is well suited for warehouse cycle counting, manufacturing WIP tracking, asset audits, and controlled read-zone RFID workflows within the US UHF band where ruggedization and high tag throughput are required.

When It Is Not the Right Choice

It is not appropriate for fixed portal infrastructure, ultra-long-range yard interrogation, or deployments requiring a fully self-contained handheld RFID computer with integrated display and operating system.
