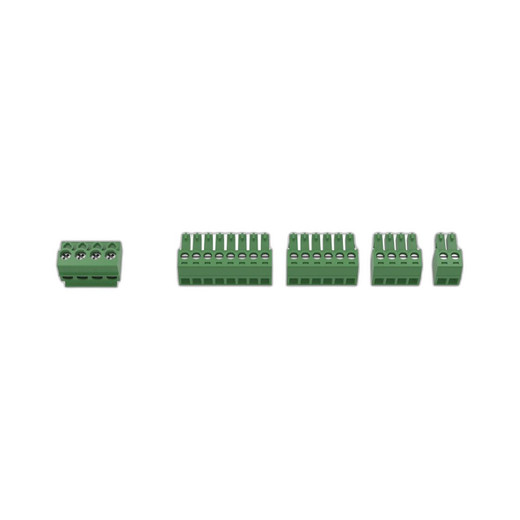

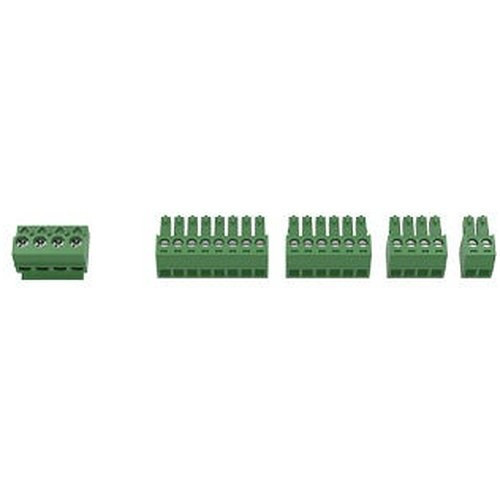

Axis 02686-001 TA1902 Access Control Connector Kit
Overview
The Axis 02686-001 is a wired connector kit purpose-built to streamline the physical integration of Axis access control systems. If you're deploying an access control system with Axis door controllers or network door stations, this kit consolidates the connectors and cable management hardware you'll need into a single package. Rather than sourcing individual RJ45 adapters, terminal blocks, and I/O connectors separately, the TA1902 eliminates integration dead time and reduces the risk of field substitutions or compatibility mismatches. This matters on larger installations where wiring errors or mismatched connector types can delay commissioning or create maintenance headaches downstream.
Key Features
- Mixed Connector Types: Includes RJ45 connectors (for network wiring), terminal blocks (for 24VDC and alarm wiring), and I/O connectors (for door strike, request-to-exit, and sensor integration). Having matched connectors reduces wire-labeling confusion and speeds up the first installation.
- Designed for Axis Door Controllers: The kit is engineered to work with Axis access control units — door controllers, networked door stations, and related peripherals. Compatibility is validated by Axis engineering, not assumed, so you avoid trial-and-error fitting during site work.
- Cable Management Accessories: The kit includes cable ties, routing clips, or sleeves to keep wiring organized and protect connections from physical damage on warehouse floors, building entryways, or loading docks.
- Durable Construction: Connectors are rated for repeated use in commercial environments. If terminals are rated for corrosion resistance or UV stability, that extends the service life of your wiring harness in semi-outdoor or high-humidity spaces.
- Labeled and Documented: Connectors are color-coded or labeled to match the terminal assignments on Axis controllers, reducing the chance of wiring the door strike to the wrong terminal or reversing polarity on sensor inputs.
- Supports System Flexibility: The range of connector types means you can adapt the kit to single-door or multi-door deployments, integrate multiple reader technologies (magnetic stripe, proximity, biometric readers), and accommodate both normally-open and normally-closed door hardware.
Compatibility & Use Cases
Deploy the TA1902 connector kit with Axis door controllers (such as the A1001 or A8004-VE) or Axis network door stations used in commercial buildings, educational institutions, warehouses, and enterprise campuses. The wired connectivity means it integrates into your structured cabling runs, not wireless mesh networks. This is a fit for environments where you already have Cat5e/Cat6 infrastructure in place and want to minimize radio interference or maintain air-gapped physical security on certain entry points.
If you're scaling a multi-building access control deployment, standardizing on the 02686-001 (often searched as 02686 001) connector kit means field technicians carry one familiar package across sites, reducing training overhead and spare-parts inventory. On retrofit projects, having pre-assembled and pre-tested connector harnesses lowers the chance of rework.
What's in the Box
- RJ45 connectors (quantity and type per Axis documentation)
- Terminal blocks (24VDC, alarm signal, and ground terminals)
- I/O connectors (door strike, reader, REX sensor, alarms)
- Cable management accessories (ties, clips, routing sleeves)
- Installation guide with terminal assignment diagrams
Frequently Asked Questions
Q: Does the Axis 02686-001 work with non-Axis door controllers?
A: No. The TA1902 kit is engineered for Axis access control hardware. If you're integrating third-party controllers, you'll need connector kits matched to their terminal specifications.
Q: Can I use the TA1902 kit for both 24VDC and 12VDC door hardware?
A: The terminal blocks accommodate 24VDC standard in commercial access control. If your door strike or readers run on 12VDC, verify with the Axis installation guide or consult the controller datasheet to confirm whether you need a separate power distribution module.
Q: Does this kit include wireless connectivity?
A: No. The TA1902 is a wired connector kit. All integration is through RJ45 (Ethernet), terminal blocks, and hardwired I/O connectors. It does not include wireless modules or Bluetooth bridges.
Q: How many doors can I wire with one TA1902 kit?
A: That depends on the specific Axis controller model and the number of connectors included in the kit. Refer to the Axis controller datasheet and the kit's installation guide for terminal capacity and port limits.
Q: Is the 02686-001 suitable for outdoor installations?
A: The connectors are rated for commercial durability but check the IP rating and temperature range in the kit documentation if your door controller or readers are mounted in wet or extreme-temperature environments. Outdoor door stations may require additional environmental housings.
Q: What is the warranty on the Axis 02686-001?
A: Warranty terms are provided in Axis documentation. Verify with the seller or Axis support for the specific coverage and duration.
Jerry TildsenPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Axis 02686-001 TA1902 connector kit is a practical consolidation tool — not flashy, but valuable if you're wiring multiple Axis door controllers or deploying a standardized access control roll-out across multiple sites. The kit bundles RJ45 connectors, terminal blocks, and I/O harnesses so you don't have to hunt for compatible adapters on three different suppliers. That eliminates a common source of installation delays and compatibility rework.
Technical Highlights:
- Mixed Connector Types (RJ45, Terminal Blocks, I/O): Consolidates the most common wiring types for Axis door controllers in a single kit, reducing trips back to the van or the parts bin. The terminal blocks handle 24VDC power and alarm signaling, while I/O connectors mate directly to Axis controller terminals for door strike, reader, and sensor integration.
- Color-Coded or Labeled Terminals: Terminals are identified to match Axis controller pinouts, so technicians can wire by label rather than cross-referencing a separate diagram. That cuts wiring errors and speeds commissioning on multi-door projects.
- Cable Management Included: Cable ties, routing clips, and sleeves keep harnesses organized and protect connections from foot traffic, dust, or accidental disconnection — especially important in high-traffic entry points or warehouse dock areas where vibration and movement are constant.
Deployment Considerations:
- The kit is wired-only. If your Axis controller is network-connected (which it almost always is), you'll still run Cat5e/Cat6 for controller-to-switch connectivity and a separate 24VDC power feed. The TA1902 handles the door hardware side of the integration, not the network side.
- Connector counts matter. A single kit may support one multi-door controller or multiple single-door stations. Verify the kit contents match your controller model before ordering. If you're scaling to 10+ doors, you may need two kits or a custom harness assembly.
Best fit: enterprise campuses, warehouse or manufacturing facilities, or retail chains rolling out a uniform access control architecture where field teams need a standard, pre-tested connector kit to reduce assembly time and wiring errors across multiple installations. Not needed if you're deploying just one or two Axis controllers — wire them manually from a catalog of individual connectors. Appropriate for integrators building access control as a service or managing multi-year refresh cycles.
