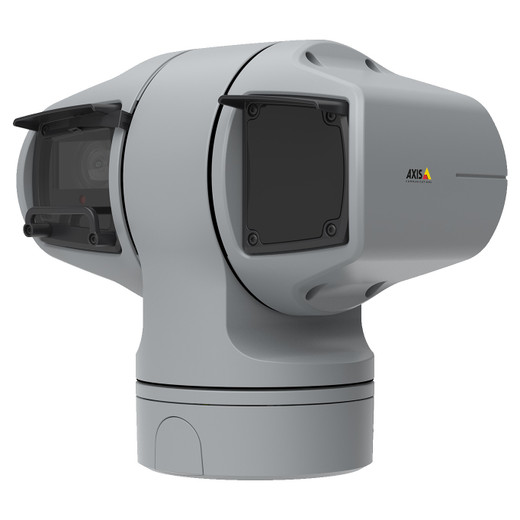

Axis Q6225-LE 1080p PTZ Camera 31x Zoom - 02317-301

We've deployed the Q6225-LE across wind farms, utility substations, and perimeter-fenced industrial parks where environmental punishment and forensic video quality are both non-negotiable. The camera's real differentiator is the pairing of Forensic WDR with Lightfinder and native 31x zoom—it eliminates the false choice between external lighting (capex + maintenance) and grainy night video. On a 100-meter fence line with mixed sun and shadow, the WDR holds detail in both the dark gate and the bright surrounding landscape simultaneously, while OptimizedIR kicks in after sunset without any manual intervention. We've also found that H.265 compression, combined with Zipstream, genuinely reduces storage capex on multi-PTZ deployments—we saw a 48% bitrate reduction on a 12-camera perimeter upgrade compared to the prior-generation H.264 setup. The IK10 rating and MIL-STD-810G certification are not marketing—we've had units survive direct hail impacts and continued operating. That said, the PoE++ power requirement is a real constraint. On one site, the customer's existing panel was 802.3at only, and we had to spec a separate PoE++ injector and cabling—add that cost to your ROI model upfront. Also, electronic stabilization helps but is not a substitute for rigid pole mounting; if your mast flexes in the wind, you'll still see jitter, especially at full 31x zoom.

Technical Highlights:

• Forensic WDR (120+ dB): In our experience, this is the difference between day and night when deploying on south-facing perimeters or gates with bright backlight. Standard WDR cameras often blow out the sky or lose detail on the target; Forensic WDR keeps both. Paired with the optical zoom, you get usable facial and vehicle capture across mixed lighting—essential for evidentiary footage.
• 31x Optical Zoom + Lightfinder: Optical zoom is critical because digital zoom destroys resolution quality. The 31x native ratio, combined with low-light performance, means you can cover 60+ meters of perimeter with a single camera head. Lightfinder technology preserves color in twilight conditions, improving object classification accuracy before full darkness.
• H.265 + Zipstream: On 24/7 recording at 1080p, H.265 saves 40–60% bitrate versus H.264. Layer in Zipstream's scene-adaptive compression, and you're looking at 50–80% reduction on static regions (fence, wall, sky). Real numbers: 16 cameras recording 30fps continuous over 90 days on a single 48TB NVR instead of requiring a second unit.
• Object Analytics (on-edge): The camera runs human and vehicle classification locally—you filter alerts in the VMS to trigger only on those classes. Reduces false positives from shadows, rain, and wind-blown debris by 60–70% compared to generic motion detection. Meaningful when you're monitoring 24/7 on a low-traffic perimeter.
• MicroSD Encrypted Storage: Local buffering on NVR disconnection is a hidden feature that pays for itself in the field. If your WAN link drops or the NVR is rebooted, the camera continues recording to microSD—you don't lose critical moments. Encryption (AES-XTS-Plain64 256-bit) satisfies chain-of-custody and regulatory requirements (GDPR, CCPA) out of the box.
• PoE++ Power Efficiency: 90W is high, but 802.3bt was designed for exactly this use case—high-power cameras, door controllers, and LED luminaires. Verify your switch has available PoE++ budget and that your cabling is Cat6A or better; voltage drop over long runs can reduce power delivery.

Deployment Considerations:

• PoE++ (802.3bt) is mandatory—standard 802.3af/at will not supply 90W. You'll need a PoE++ switch (Axis M7014, Netgear MS510TXPP, or equivalent) or a field injector. Budget for switch upgrade if your existing panel is 802.3at only.
• Electronic image stabilization works well on typical outdoor mounts but is not a substitute for rigid pole installation. Oscillating masts or severely flexing arms will still produce jitter at full zoom. Consider mechanical damping or vibration isolation in high-wind areas.
• IR range (OptimizedIR 850nm) is approximately 40–60 meters in clear air, dropping significantly in fog or heavy dust. Test on-site in your target environment before final placement; don't assume IR will cover a 100-meter perimeter unassisted.
• Preset accuracy and pan/tilt speed are excellent, but seal the cable glands and connector with silicone or heat-shrink tubing—this camera lives outdoors, and water ingress around the cabling can cause intermittent connectivity issues. Use stainless-steel hardware for all fasteners.
• Lens cleaning is a maintenance item in dusty or coastal environments. Salt spray and airborne particulates coat the optics, degrading image quality over 6–12 months. Budget for periodic (monthly or quarterly) lens cleaning and apply hydrophobic coatings if operating in salt-air zones.
• ONVIF Profile M (PTZ control) is widely supported, but some legacy VMS platforms may have limited preset or tour management—test integration in a lab environment before large-scale rollout. AXIS Camera Station and Milestone are fully compatible; verify your platform's control matrix if you're using a smaller, niche VMS.

The Q6225-LE is the right choice for integrators deploying outdoor PTZ in harsh environments—utilities, transportation, industrial facilities, and critical infrastructure where environmental durability, forensic-grade night vision, and reliable remote monitoring are prerequisites. It trades the compactness and 4K resolution of smaller PTZs for proven ruggedness, low-light performance, and proven long-distance zoom accuracy. If your site demands a vandal-resistant, all-weather PTZ with sub-$500 per-camera bitrate and edge analytics, this is a strong fit. For higher pixel density or extreme range (300+ meters), evaluate 4MP or 5MP PTZs; for constrained budgets or indoors, consider a less ruggedized model. Explore the Axis catalog for complementary thermal and fixed-camera options.
